Ornit OR-Bulb Aluminum Dome Head Rivet
Ornit OR-Bulb Aluminum Dome Head Rivet
SKU:ORB-978e2d
Secure doors, cabin components, and rails with Ornit OR-Bulb Aluminum Dome Rivets. Ideal for automotive and industrial use.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ornit OR-Bulb Aluminum Dome Head Rivet
$29.99
Quantity: 1
Claim Your Seller Account
Ornit OR-Bulb Aluminum Dome Head Rivet
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

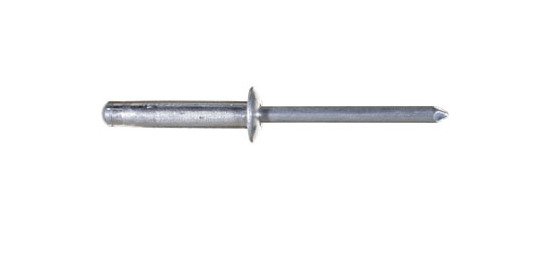

The Ornit OR-Bulb 15.3mm Aluminum Dome Head Rivet offers a secure assembly solution for doors, cabin components, and railings. Made of Aluminum Alloy ALmg 2.5 with a natural finish, it provides excellent grip range of 1.0mm to 4.0mm, with a nominal shear force of 92kgf and tensile force of 122kgf. Ideal for automotive and industrial applications, this rivet ensures a highly secure joint, preventing electrical problems and corrosion. Trust Ornit's quality for your assembly needs.
Product Specifications
Applications Automotive Application

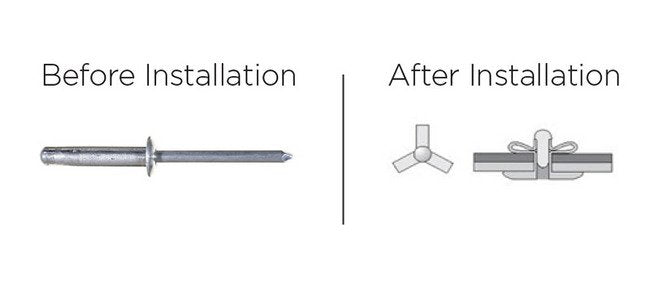

InteriorThe Or Bulb is an aluminum alloy, multi-grip fastener with split tail that forms a large blind side area. It creates a highly secure joint in variety of components within your vehicle.
Nominal Dimensions Body Length
15.3 mm | 0.604 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
5.0 to 5.3 mm | 0.196 to 0.208 in
Nominal Dimensions Head Diameter
9.8 mm | 0.386 in
Nominal Dimensions Head Thickness
1.80 mm | 0.071 in
Nominal Dimensions Mandrel Diameter
2.9 mm | 0.114 in
Nominal Dimensions Maximum Grip Range
4.0 mm | 0.158 in
Nominal Dimensions Minimum Grip Range
1.0 mm | 0.039 in
Nominal Forces Nominal Shear Force
92 kgf | 202 lbf
Nominal Forces Nominal Tensile Force
122 kgf | 268 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
3000
Technical Specs Head Style
Dome Head
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy ALmg 2.5
