Ornit OR-Bulb Aluminum Dome Head Rivet 17.5mm
Ornit OR-Bulb Aluminum Dome Head Rivet 17.5mm
SKU:ORB-154997
Secure, durable, and corrosion-resistant Ornit OR-Bulb Aluminum Dome Rivet for a reliable joint in various applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Ornit OR-Bulb Aluminum Dome Head Rivet 17.5mm
$49.99
Quantity: 1
Claim Your Seller Account
Ornit OR-Bulb Aluminum Dome Head Rivet 17.5mm
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

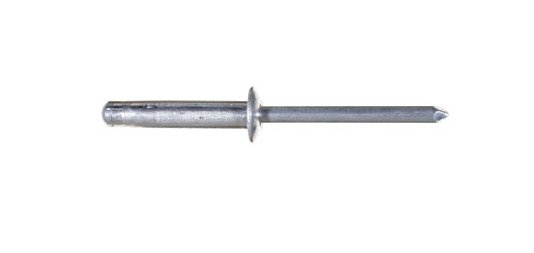

The Ornit OR-Bulb 17.5mm Aluminum Dome Head Rivet is a premium fastener designed for secure assembly in various applications. Made from Aluminum Alloy ALmg 2.5 with a natural finish, it offers exceptional durability. With a large blind side area and multi-grip design, this rivet guarantees a highly secure joint, preventing electrical issues and corrosion. Ideal for use in doors, main cabin interiors, and securing transport goods, it meets stringent industrial standards for reliability and performance.
Product Specifications
Applications Automotive Application

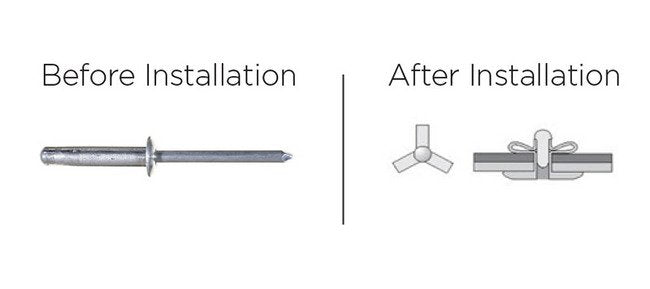

InteriorThe Or Bulb is an aluminum alloy, multi-grip fastener with split tail that forms a large blind side area. It creates a highly secure joint in variety of components within your vehicle.
Nominal Dimensions Body Length
17.5 mm | 0.691 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
5.0 to 5.3 mm | 0.196 to 0.208 in
Nominal Dimensions Head Diameter
9.8 mm | 0.386 in
Nominal Dimensions Head Thickness
1.80 mm | 0.071 in
Nominal Dimensions Mandrel Diameter
2.9 mm | 0.114 in
Nominal Dimensions Maximum Grip Range
6.3 mm | 0.249 in
Nominal Dimensions Minimum Grip Range
1.0 mm | 0.039 in
Nominal Forces Nominal Shear Force
92 kgf | 202 lbf
Nominal Forces Nominal Tensile Force
122 kgf | 268 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
3000
Technical Specs Head Style
Dome Head
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy ALmg 2.5
