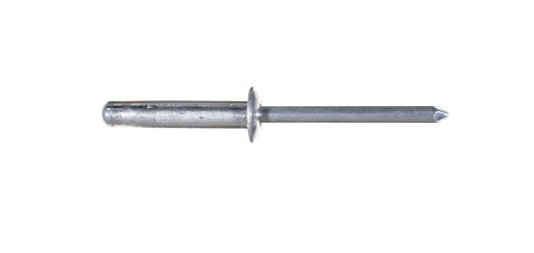

Ornit OR-Bulb Aluminum Dome Head Rivet - 28.0mm
Ornit OR-Bulb Aluminum Dome Head Rivet - 28.0mm
SKU:ORB-49641e
Secure your assemblies with the Ornit 28.0mm Aluminum Dome Head Rivet, crafted for reliability and strength in various applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ornit OR-Bulb Aluminum Dome Head Rivet - 28.0mm
$29.99
Quantity: 1
Claim Your Seller Account
Ornit OR-Bulb Aluminum Dome Head Rivet - 28.0mm
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

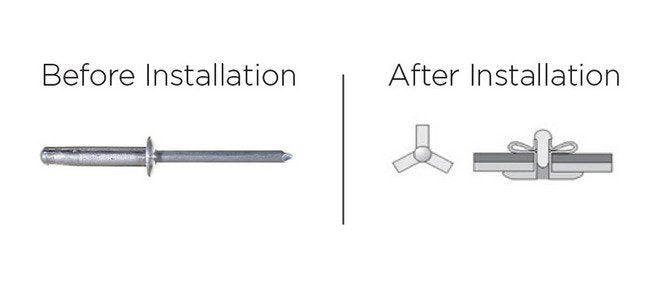

The Ornit OR-Bulb 28.0mm Aluminum Dome Head Rivet is a highly reliable and secure multi-grip fastener designed for various door components, interior fixtures, transportation rails, and automotive applications. Crafted from Aluminum Alloy ALmg 2.5 with a natural finish, this rivet offers exceptional strength with a split tail construction for enhanced grip and blind side expansion. With a nominal shear force of 92 kgf and a nominal tensile force of 122 kgf, this rivet ensures durability and performance across a range of settings.
Product Specifications
Applications Automotive Application
InteriorThe Or Bulb is an aluminum alloy, multi-grip fastener with split tail that forms a large blind side area. It creates a highly secure joint in variety of components within your vehicle.
Nominal Dimensions Body Length
28.0 mm | 1.102 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
5.0 to 5.3 mm | 0.196 to 0.208 in
Nominal Dimensions Head Diameter
9.8 mm | 0.386 in
Nominal Dimensions Head Thickness
1.80 mm | 0.071 in
Nominal Dimensions Mandrel Diameter
2.9 mm | 0.114 in
Nominal Dimensions Maximum Grip Range
16.0 mm | 0.630 in
Nominal Dimensions Minimum Grip Range
8.0 mm | 0.315 in
Nominal Forces Nominal Shear Force
92 kgf | 202 lbf
Nominal Forces Nominal Tensile Force
122 kgf | 268 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
2500
Technical Specs Head Style
Dome Head
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy ALmg 2.5
