Ornit OR-Bulb Aluminum Large Head Rivet 24.0mm Body Length
Ornit OR-Bulb Aluminum Large Head Rivet 24.0mm Body Length
SKU:ORB-a6a4f4
Premium Ornit OR-Bulb Aluminum Large Head Rivet for secure assembly. Aluminum Alloy ALmg 2.5, 24.0mm body length, ideal for doors, cabin, and railings.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ornit OR-Bulb Aluminum Large Head Rivet 24.0mm Body Length
$29.99
Quantity: 1
Claim Your Seller Account
Ornit OR-Bulb Aluminum Large Head Rivet 24.0mm Body Length
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

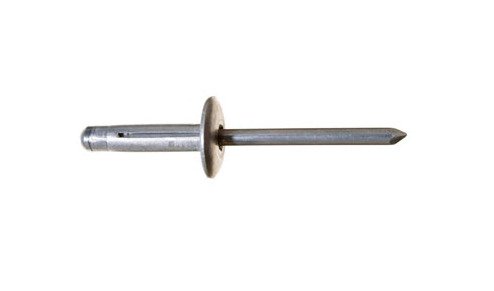

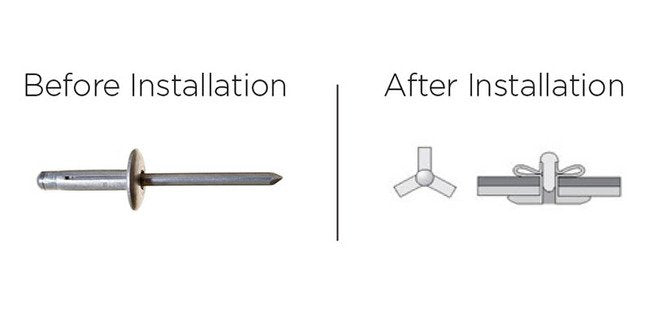

The Ornit OR-Bulb Aluminum Large Head Rivet with a 24.0mm body length is a premium fastening solution designed for securing a variety of components, ideal for doors, interior cabin applications, and securing rails. Crafted from high-quality Aluminum Alloy ALmg 2.5, this rivet offers excellent corrosion resistance and electrical conductivity. With a large blind side area and a split tail design, it ensures a secure joint even in soft materials. Enjoy a nominal shear force of 92 kgf and nominal tensile force of 122 kgf, meeting demanding requirements for durability and strength. Perfect for automotive use and industrial applications demanding reliability and performance.
Product Specifications
Applications Automotive Application
InteriorIt creates a highly secure joint in variety of components within your vehicle.
Nominal Dimensions Body Length
24.0 mm | 0.945 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
5.0 to 5.3 mm | 0.196 to 0.208 in
Nominal Dimensions Head Diameter
14 mm | 0.551 in
Nominal Dimensions Head Thickness
2.00 mm | 0.079 in
Nominal Dimensions Mandrel Diameter
2.9 mm | 0.114 in
Nominal Dimensions Maximum Grip Range
12.0 mm | 0.472 in
Nominal Dimensions Minimum Grip Range
4.0 mm | 0.157 in
Nominal Forces Nominal Shear Force
92 kgf | 202 lbf
Nominal Forces Nominal Tensile Force
122 kgf | 268 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
1500
Technical Specs Head Style
Large
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy ALmg 2.5
