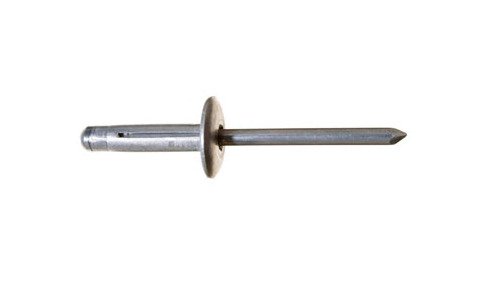

Ornit OR-Bulb Aluminum Rivet
Ornit OR-Bulb Aluminum Rivet
SKU:ORB-380588
Aluminum Alloy Rivet for secure and durable fastening, ideal for doors, transport goods, and automotive applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ornit OR-Bulb Aluminum Rivet
$29.99
Quantity: 1
Claim Your Seller Account
Ornit OR-Bulb Aluminum Rivet
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

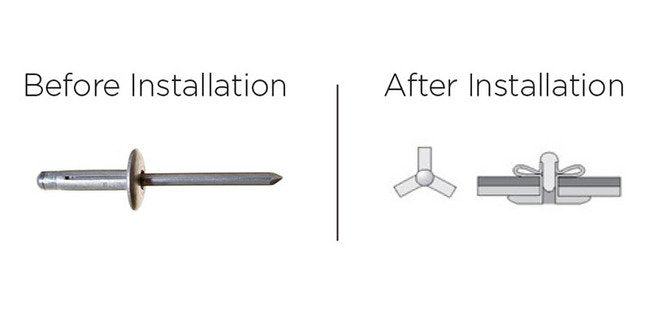

The Ornit OR-Bulb Aluminum Rivet is a reliable, high-quality fastener designed for securing various components, including doors and transport goods. Crafted from Aluminum Alloy ALmg 2.5, this rivet offers exceptional strength and durability. With a large blind side area and a split tail design, it ensures a secure joint formation, reducing the risk of electrical problems and corrosion. Ideal for automotive applications and soft materials, the OR-Bulb rivet guarantees a robust assembly in any setting.
Product Specifications
Applications Automotive Application
InteriorIt creates a highly secure joint in variety of components within your vehicle.
Nominal Dimensions Body Length
20.5 mm | 0.807 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
5.0 to 5.3 mm | 0.196 to 0.208 in
Nominal Dimensions Head Diameter
14 mm | 0.551 in
Nominal Dimensions Head Thickness
2.00 mm | 0.079 in
Nominal Dimensions Mandrel Diameter
2.9 mm | 0.114 in
Nominal Dimensions Maximum Grip Range
9.0 mm | 0.354 in
Nominal Dimensions Minimum Grip Range
1.0 mm | 0.039 in
Nominal Forces Nominal Shear Force
92 kgf | 202 lbf
Nominal Forces Nominal Tensile Force
122 kgf | 268 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
2500
Technical Specs Head Style
Large
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy ALmg 2.5
