Ornit OR-Bulb X-Large Head Aluminum Rivet
Ornit OR-Bulb X-Large Head Aluminum Rivet
SKU:ORB-4a44ac
Secure and durable Ornit OR-Bulb X-Large Head Aluminum Rivet for reliable assembly in various applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ornit OR-Bulb X-Large Head Aluminum Rivet
$29.99
Quantity: 1
Claim Your Seller Account
Ornit OR-Bulb X-Large Head Aluminum Rivet
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

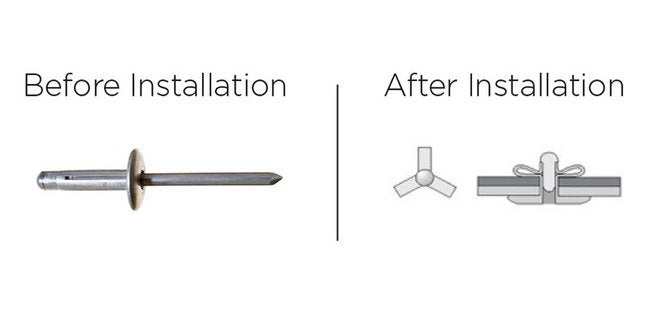

The Ornit OR-Bulb X-Large Head Aluminum Rivet is a high-quality fastener designed for secure assembly in various applications. Made from Aluminum Alloy ALmg 2.5, it offers exceptional durability and resistance to corrosion. With a large blind side area and a split tail design, this rivet ensures a strong and reliable joint, perfect for securing doors, interior cabin components, and transport rails. With a nominal shear force of 92 kgf and a nominal tensile force of 122 kgf, it guarantees robust performance. Ideal for automotive and industrial use, this rivet meets stringent quality standards for reliability and safety.
Product Specifications
Applications Automotive Application
InteriorIt creates a highly secure joint in variety of components within your vehicle.
Nominal Dimensions Body Length
15.3 mm | 0.602 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
5.0 to 5.3 mm | 0.196 to 0.208 in
Nominal Dimensions Head Diameter
15.9 mm | 0.624 in
Nominal Dimensions Head Thickness
2.00 mm | 0.079 in
Nominal Dimensions Mandrel Diameter
2.9 mm | 0.114 in
Nominal Dimensions Maximum Grip Range
4.0 mm | 0.157 in
Nominal Dimensions Minimum Grip Range
1.0 mm | 0.039 in
Nominal Forces Nominal Shear Force
92 kgf | 202 lbf
Nominal Forces Nominal Tensile Force
122 kgf | 269 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
2000
Technical Specs Head Style
Extra Large
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy ALmg 2.5
