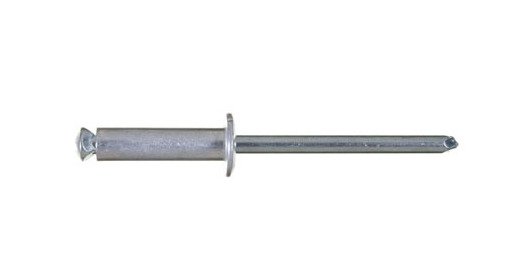

Ornit OR-Peel 51.0mm Dome Head Self Piercing Rivets
Ornit OR-Peel 51.0mm Dome Head Self Piercing Rivets
SKU:ORP-4ce857
Enhance projects with Ornit OR-Peel 51.0mm Dome Head Rivets for superior strength & grip range. Withstand up to 250 kgf shear force & 320 kgf tensile force.
Regular price
$55.99
Regular price
Sale price
$55.99
Unit price
per
Initiate Order
Ornit OR-Peel 51.0mm Dome Head Self Piercing Rivets
$55.99
Quantity: 1
Claim Your Seller Account
Ornit OR-Peel 51.0mm Dome Head Self Piercing Rivets
$55.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your riveting projects with Ornit OR-Peel 51.0mm Dome Head Self Piercing Rivets. Crafted from Aluminum Alloy, these rivets offer exceptional strength and durability. With a mandated diameter of 6.4mm, they meet stringent industry standards for structural integrity. Ideal for applications requiring a minimum grip range of 15.0mm to a maximum of 35.0mm, these rivets provide a secure fastening solution. Experience unparalleled shear force resistance of 250 kgf and tensile force support of 320 kgf. Trust Ornit for unparalleled reliability and precision in every rivet.
Product Specifications
Nominal Dimensions Body Length
51.0 mm | 2.0 in
Nominal Dimensions Diameter
6.4 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.8 to 7.0 mm | 0.268 to 0.276 in
Nominal Dimensions Head Diameter
12.0 mm | 0.472 in
Nominal Dimensions Head Thickness
1.80 mm | 0.071 in
Nominal Dimensions Mandrel Diameter
3.6 mm | 0.142 in
Nominal Dimensions Maximum Grip Range
35.0 mm | 1.378 in
Nominal Dimensions Minimum Grip Range
15.0 mm | 0.591 in
Nominal Forces Nominal Shear Force
250 kgf | 551 lbf
Nominal Forces Nominal Tensile Force
320 kgf | 706 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (ALmg 3.0/5.0)
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
1000
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Zinc Coated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
