Ornit P-Series 10.0mm M3 Open End CSK Rivet Nut

Name: Ornit P-Series 10.0mm M3 Open End CSK Rivet Nut
Brand: Ornit USA
SKU: PSE-69a8d9
Price: 24.99 USD
Availability: OutOfStock

SKU:PSE-69a8d9

Ornit P-Series 10.0mm M3 Rivet Nut - High-quality steel with yellow zinc finish, precise dimensions & versatile options.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

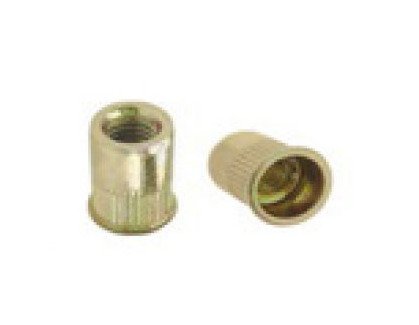

The Ornit P-Series Open End Countersunk Head (CSK) Rivet Nut offers superior performance and durability for a wide range of applications. Constructed from high-quality steel with a yellow zinc plated finish, this rivet nut ensures reliable strength and corrosion resistance. With a thread size of M3 and precise dimensions including a 10.0mm Dimension L, this rivet nut provides a secure grip range of 1.5mm to 2.5mm. Explore the versatility of this product, available in Stainless Steel and Aluminum variants, with optional serration style for added customization.

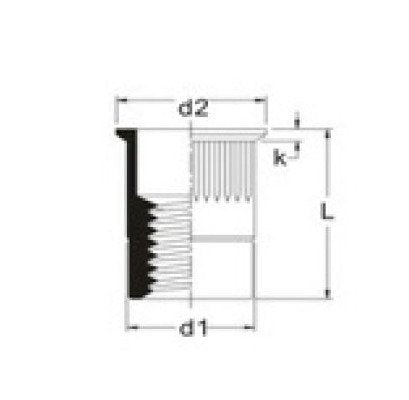

Product Specifications

Dimensions Dimension D1

5.0 mm

Dimensions Dimension D2

6.0 mm

Dimensions Dimension K

0.5 mm

Dimensions Dimension L

10.0 mm

Dimensions Hole Size

5.1 mm

Dimensions Maximum Grip Range

2.5 mm

Dimensions Minimum Grip Range

1.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Countersunk Head (CSK)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

Ornit P-Series 10.0mm M3 Open End CSK Rivet Nut
