Ornit P-Series 10.5mm M3 Rivet Nut
Ornit P-Series 10.5mm M3 Rivet Nut
SKU:PSE-b99710
Discover Ornit's reliable 10.5mm M3 Rivet Nut for secure fastening in industrial applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Ornit P-Series 10.5mm M3 Rivet Nut
$24.99
Quantity: 1
Claim Your Seller Account
Ornit P-Series 10.5mm M3 Rivet Nut
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

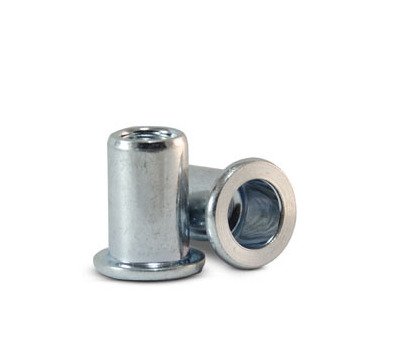

The Ornit P-Series 10.5mm Dimension L and M3 Thread Size Open End Cylindrical Head (Flat) Rivet Nut is a high-quality fastening solution crafted from steel with a yellow zinc plated finish. With precise dimensions and a range of 1.5mm to 2.5mm for grip, this rivet nut ensures a secure hold. It offers versatility with options for Stainless Steel and Aluminum materials, along with serration style variations, catering to diverse needs in industrial applications.

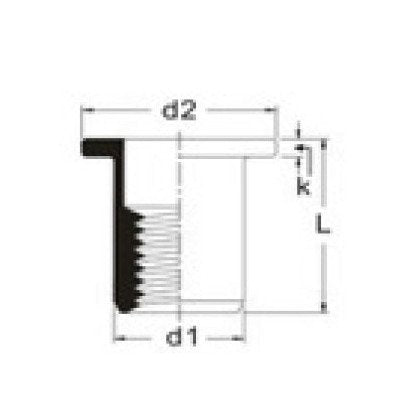

Product Specifications
Dimensions Dimension D1
5.0 mm
Dimensions Dimension D2
8.3 mm
Dimensions Dimension K
0.8 mm
Dimensions Dimension L
10.5 mm
Dimensions Hole Size
5.1 mm
Dimensions Maximum Grip Range
2.5 mm
Dimensions Minimum Grip Range
1.5 mm
Note Note
Stainless Steel & Aluminum are available. Serration style is available.
Technical Specs Brands
Ornit
Technical Specs Finish
Yellow Zinc Plated
Technical Specs Head Style
Cylindrical Head (Flat)
Technical Specs Material
Steel
Technical Specs Rivet Type
Open End
Technical Specs Thread Size
M3
