Ornit P-Series 10.5mm Open End CSK Rivet Nut - M4 Thread

Name: Ornit P-Series 10.5mm Open End CSK Rivet Nut - M4 Thread
Brand: Ornit USA
SKU: PSE-7227ab
Price: 14.99 USD
Availability: OutOfStock

SKU:PSE-7227ab

Ornit P-Series 10.5mm Open End CSK Rivet Nut - Reliable, durable, and compliant with industry standards.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

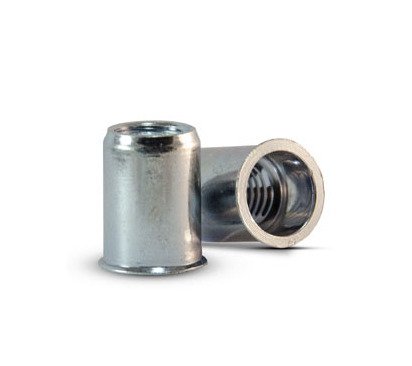

The Ornit P-Series 10.5mm Open End CSK Rivet Nut with M4 Thread offers exceptional gripping strength, perfect for a wide range of applications. Crafted from durable steel with a yellow zinc plated finish, it ensures long-lasting performance in various environments. With a countersunk head design and precise dimensions, this rivet nut provides a secure and flush fit, making it ideal for structural assemblies. Additionally, it complies with Federal/DoD procurement standards, meeting rigorous quality requirements for government and institutional procurement needs.

Product Specifications

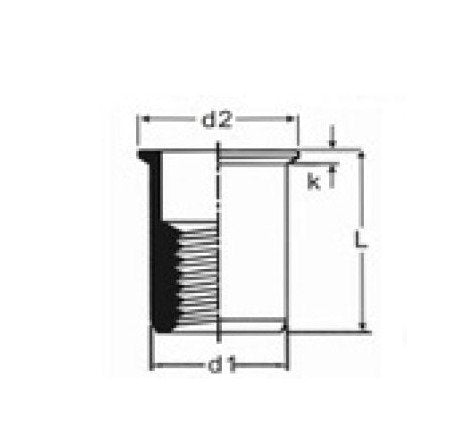

Dimensions Dimension D1

6.0 mm

Dimensions Dimension D2

7.0 mm

Dimensions Dimension K

0.5 mm

Dimensions Dimension L

10.5 mm

Dimensions Hole Size

6.1 mm

Dimensions Maximum Grip Range

1.5 mm

Dimensions Minimum Grip Range

0.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Countersunk Head (CSK)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

Ornit P-Series 10.5mm Open End CSK Rivet Nut - M4 Thread
