Ornit P-Series 11.0mm M4 Thread Cylindrical Rivet Nut

Name: Ornit P-Series 11.0mm M4 Thread Cylindrical Rivet Nut
Brand: Ornit USA
SKU: PSE-e42cc6
Price: 12.99 USD
Availability: OutOfStock

SKU:PSE-e42cc6

Secure, durable Ornit 11.0mm flat head Rivet Nut with M4 Thread, Yellow Zinc Plated. Meets FAR & GSA standards.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

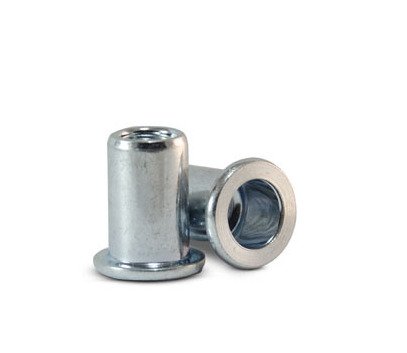

The Ornit P-Series 11.0mm Cylindrical Rivet Nut is crafted from high-grade steel with a Yellow Zinc Plated finish, ensuring durability and corrosion resistance. Featuring an Open End design and a precise M4 Thread Size, this rivet nut provides a secure fastening solution with a Grip Range of 0.5mm to 1.5mm. With options for Stainless Steel & Aluminum materials and available Serration style, it caters to diverse application needs, meeting stringent industry standards like FAR compliance and GSA requirements.

Product Specifications

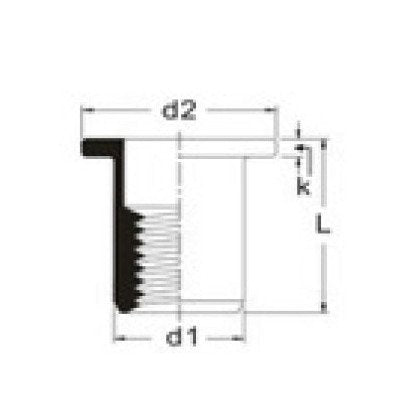

Dimensions Dimension D1

6.0 mm

Dimensions Dimension D2

9.3 mm

Dimensions Dimension K

0.8 mm

Dimensions Dimension L

11.0 mm

Dimensions Hole Size

6.1 mm

Dimensions Maximum Grip Range

1.5 mm

Dimensions Minimum Grip Range

0.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Cylindrical Head (Flat)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

Ornit P-Series 11.0mm M4 Thread Cylindrical Rivet Nut
