Ornit P-Series 11.0mm M4 Thread Open End Rivet Nut with Serration

Name: Ornit P-Series 11.0mm M4 Thread Open End Rivet Nut with Serration
Brand: Ornit USA
SKU: PSE-3e615e
Price: 24.99 USD
Availability: OutOfStock

SKU:PSE-3e615e

High-quality Ornit 11.0mm M4 Thread Open End Rivet Nut for secure fastening in diverse applications.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

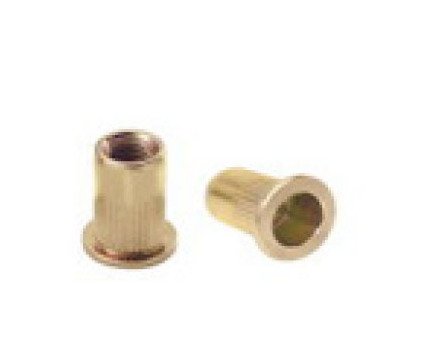

The Ornit P-Series Open End Cylindrical Head (Flat) Rivet Nut with Serration is a durable and versatile fastening solution perfect for a wide range of applications. Made from high-quality steel with a yellow zinc plated finish, this rivet nut features precise dimensions including a 11.0mm length and M4 thread size. With a minimum grip range of 0.5mm and a maximum grip range of 1.5mm, it offers secure and reliable fastening. Additionally, it is available in stainless steel and aluminum variants, and the serration style ensures enhanced grip strength. Trust in Ornit for quality and performance in every rivet nut.

Product Specifications

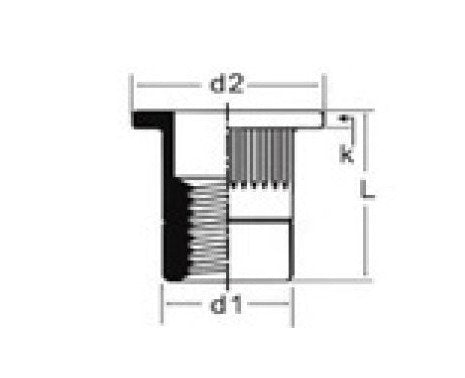

Dimensions Dimension D1

6.0 mm

Dimensions Dimension D2

9.3 mm

Dimensions Dimension K

0.8 mm

Dimensions Dimension L

11.0 mm

Dimensions Hole Size

6.1 mm

Dimensions Maximum Grip Range

1.5 mm

Dimensions Minimum Grip Range

0.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Cylindrical Head (Flat)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

Ornit P-Series 11.0mm M4 Thread Open End Rivet Nut with Serration
