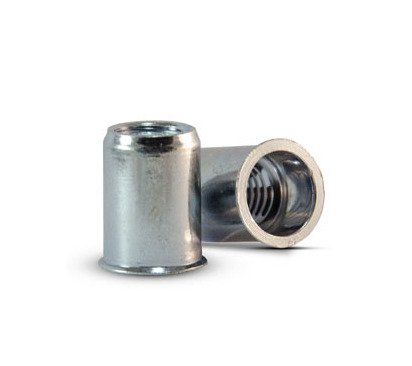

Ornit P-Series 11.5mm Open End CSK Rivet Nut, M4 Thread, Yellow Zinc Plated

Name: Ornit P-Series 11.5mm Open End CSK Rivet Nut, M4 Thread, Yellow Zinc Plated
Brand: Ornit USA
SKU: PSE-89e40e
Price: 14.99 USD
Availability: OutOfStock

SKU:PSE-89e40e

High-quality Ornit P-Series 11.5mm Open End CSK Rivet Nut, M4 Thread, yellow zinc plated for secure and durable fastening.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Ornit P-Series 11.5mm Open End Countersunk Head (CSK) Rivet Nut delivers top-notch performance for various applications. Constructed from high-quality steel with a yellow zinc plated finish, it offers durability and corrosion resistance. With precise dimensions and a grip range of 1.5mm to 2.5mm, this rivet nut ensures secure fastening. Serration style and options in stainless steel/aluminum are available, meeting diverse needs. Compliant with federal procurement standards and industry certifications, this rivet nut is a reliable choice.

Product Specifications

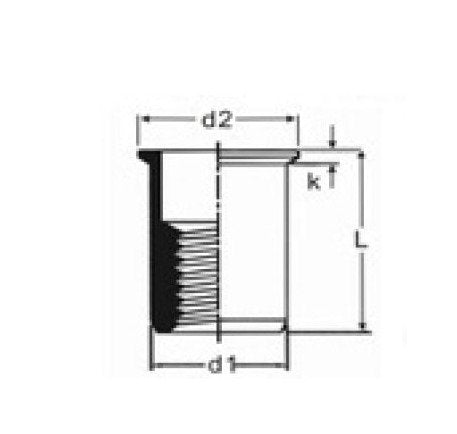

Dimensions Dimension D1

6.0 mm

Dimensions Dimension D2

7.0 mm

Dimensions Dimension K

0.5 mm

Dimensions Dimension L

11.5 mm

Dimensions Hole Size

6.1 mm

Dimensions Maximum Grip Range

2.5 mm

Dimensions Minimum Grip Range

1.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Countersunk Head (CSK)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

Ornit P-Series 11.5mm Open End CSK Rivet Nut, M4 Thread, Yellow Zinc Plated
