Ornit P-Series 13.0mm M4 Thread Open End Rivet Nut

Name: Ornit P-Series 13.0mm M4 Thread Open End Rivet Nut
Brand: Ornit USA
SKU: PSE-121229
Price: 24.99 USD
Availability: OutOfStock

SKU:PSE-121229

High-quality Ornit P-Series 13.0mm M4 Thread Rivet Nut for secure fastening. Yellow zinc plated steel construction with serrated design for enhanced grip strength.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

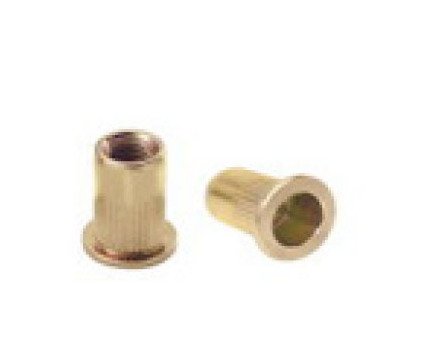

The Ornit P-Series Open End Cylindrical Head (Flat) Rivet Nut with Serration is a premium fastening solution constructed from high-quality steel with a yellow zinc plated finish. Featuring precise dimensions of 13.0mm (L) and an M4 Thread Size, this rivet nut offers a secure grip range of 2.5mm to 3.5mm. Its serrated design ensures enhanced grip strength in various materials. Suitable for stainless steel, aluminum, and more, this rivet nut is a versatile choice for both consumer and institutional applications.

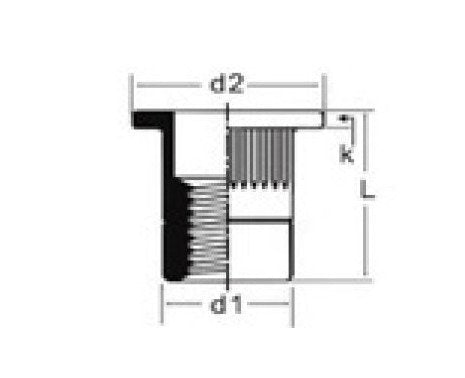

Product Specifications

Dimensions Dimension D1

6.0 mm

Dimensions Dimension D2

9.3 mm

Dimensions Dimension K

0.8 mm

Dimensions Dimension L

13.0 mm

Dimensions Hole Size

6.1 mm

Dimensions Maximum Grip Range

3.5 mm

Dimensions Minimum Grip Range

2.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Cylindrical Head (Flat)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

Ornit P-Series 13.0mm M4 Thread Open End Rivet Nut
