Ornit P-Series 14.0mm M5 Open End Rivet Nut

Name: Ornit P-Series 14.0mm M5 Open End Rivet Nut
Brand: Ornit USA
SKU: PSE-2ad601
Price: 12.99 USD
Availability: OutOfStock

SKU:PSE-2ad601

Ornit P-Series 14.0mm M5 Open End Rivet Nut - High-quality steel construction, secure grip range, versatile design options.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

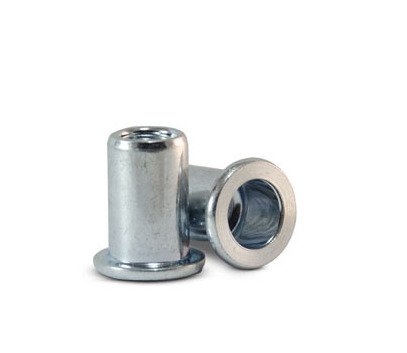

The Ornit P-Series 14.0mm M5 Open End Cylindrical Head Rivet Nut is a reliable fastening solution crafted from high-quality yellow zinc-plated steel. With dimensions ranging from a minimum grip of 2.5mm to a maximum of 3.5mm, it offers secure and durable attachment for a variety of applications. This rivet nut features a flat cylindrical head design, ensuring a professional finish while enhancing structural integrity. Additionally, options in stainless steel and aluminum materials are available, along with serration style choices, catering to diverse preferences and needs.

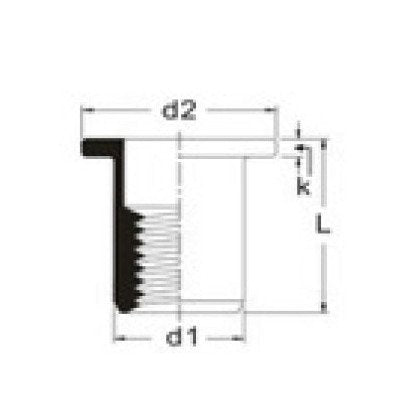

Product Specifications

Dimensions Dimension D1

7.0 mm

Dimensions Dimension D2

10.3 mm

Dimensions Dimension K

1.0 mm

Dimensions Dimension L

14.0 mm

Dimensions Hole Size

7.1 mm

Dimensions Maximum Grip Range

3.5 mm

Dimensions Minimum Grip Range

2.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Cylindrical Head (Flat)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

Ornit P-Series 14.0mm M5 Open End Rivet Nut
