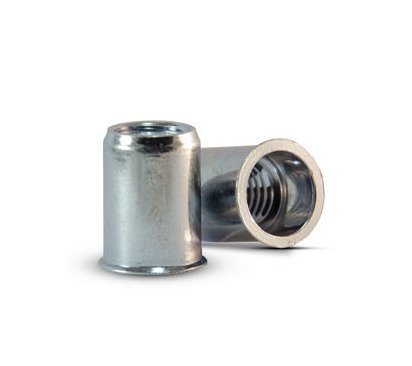

Ornit P-Series 15.5mm M8 Thread Open End CSK Rivet Nut

Name: Ornit P-Series 15.5mm M8 Thread Open End CSK Rivet Nut
Brand: Ornit USA
SKU: PSE-5e024d
Price: 14.99 USD
Availability: OutOfStock

SKU:PSE-5e024d

Premium Ornit P-Series 15.5mm M8 Rivet Nut - Steel, Yellow Zinc Plated, Open End CSK, Secure Grip Range 1.0-2.5mm

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Ornit P-Series 15.5mm open end countersunk head (CSK) rivet nut is a high-quality fastening solution ideal for various applications. Made of durable steel with a yellow zinc plated finish, it offers excellent corrosion resistance. With a thread size of M8 and precise dimensions, it ensures a secure grip range from 1.0mm to 2.5mm. Optional stainless steel and aluminum materials are available, catering to specific needs. Serration style options provide enhanced grip. Compliant with industry standards, this rivet nut guarantees reliable performance in demanding environments.

Product Specifications

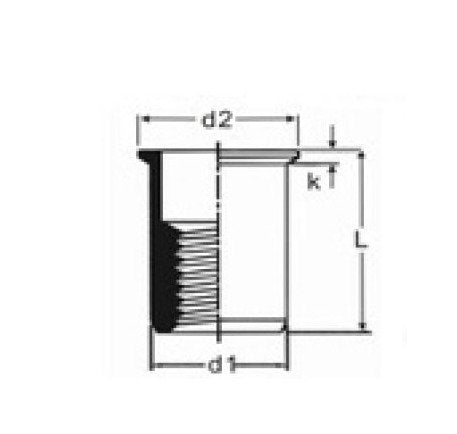

Dimensions Dimension D1

11.0 mm

Dimensions Dimension D2

12.0 mm

Dimensions Dimension K

0.5 mm

Dimensions Dimension L

15.5 mm

Dimensions Hole Size

11.1 mm

Dimensions Maximum Grip Range

2.5 mm

Dimensions Minimum Grip Range

1.0 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Countersunk Head (CSK)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

Ornit P-Series 15.5mm M8 Thread Open End CSK Rivet Nut
