Ornit P-Series 16.0mm M4 Thread CSK Rivet Nut

Name: Ornit P-Series 16.0mm M4 Thread CSK Rivet Nut
Brand: Ornit USA
SKU: PSE-a46a73
Price: 12.99 USD
Availability: OutOfStock

SKU:PSE-a46a73

Ornit P-Series 16.0mm M4 Thread CSK Rivet Nut - Durable steel rivet nut with flush countersunk head for secure fastening. Versatile and corrosion-resistant, ideal for various applications.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

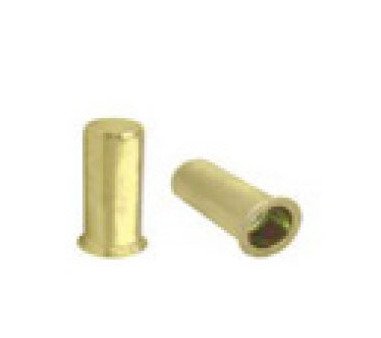

The Ornit P-Series 16.0mm M4 Thread CSK Rivet Nut is a high-quality fastener designed for secure and efficient fastening applications. Constructed from durable steel with a yellow zinc plated finish, it offers exceptional strength and corrosion resistance. The open end design and countersunk head ensure a flush installation, ideal for a wide range of industrial and commercial projects. With precise dimensions and options for stainless steel or aluminum materials, this rivet nut provides versatility and reliability in various grip ranges and hole sizes. Serration style is also available for enhanced grip performance.

Product Specifications

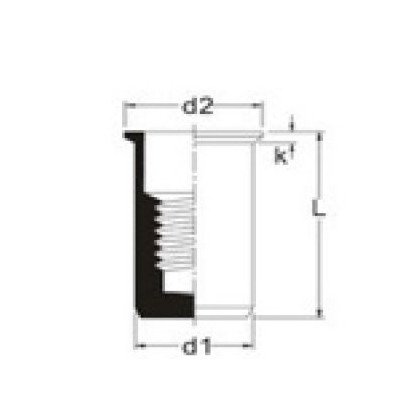

Dimensions Dimension D1

6.0 mm

Dimensions Dimension D2

7.0 mm

Dimensions Dimension K

0.5 mm

Dimensions Dimension L

16.0 mm

Dimensions Hole Size

6.1 mm

Dimensions Maximum Grip Range

2.5 mm

Dimensions Minimum Grip Range

1.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Countersunk Head (CSK)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

Ornit P-Series 16.0mm M4 Thread CSK Rivet Nut
