Ornit P-Series 17.0mm M8 Thread Open End Rivet Nut

Name: Ornit P-Series 17.0mm M8 Thread Open End Rivet Nut
Brand: Ornit USA
SKU: PSE-02748c
Price: 24.99 USD
Availability: OutOfStock

SKU:PSE-02748c

High-quality Ornit P-Series 17.0mm M8 Thread Rivet Nut for secure and versatile fastening applications.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

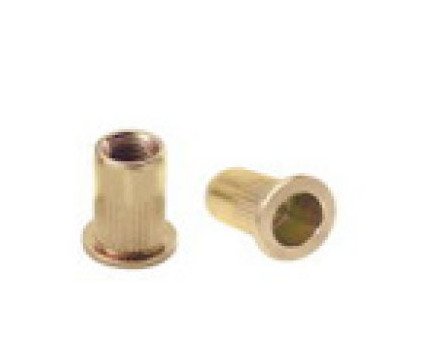

The Ornit P-Series 17.0mm Rivet Nut with M8 Thread Size and Cylindrical Head (Flat) design is a durable and versatile fastening solution. Made of high-quality steel with a yellow zinc plated finish, this rivet nut offers reliable performance in various applications. With a grip range between 1.0mm and 2.5mm, and serration style options available, it ensures secure installation. Suitable for stainless steel and aluminum materials, meeting high industry standards.

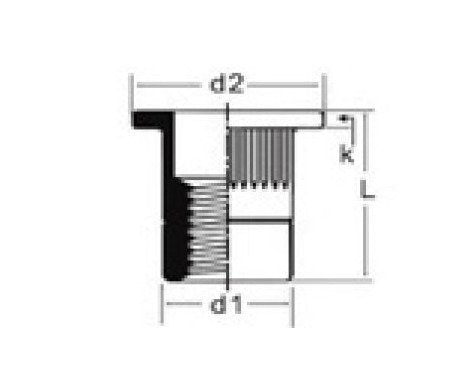

Product Specifications

Dimensions Dimension D1

11.0 mm

Dimensions Dimension D2

14.3 mm

Dimensions Dimension K

1.5 mm

Dimensions Dimension L

17.0 mm

Dimensions Hole Size

11.1 mm

Dimensions Maximum Grip Range

2.5 mm

Dimensions Minimum Grip Range

1.0 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Cylindrical Head (Flat)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

Ornit P-Series 17.0mm M8 Thread Open End Rivet Nut
