Ornit P-Series 19.0mm M10 Open End Rivet Nut

Name: Ornit P-Series 19.0mm M10 Open End Rivet Nut
Brand: Ornit USA
SKU: PSE-4b8b66
Price: 12.99 USD
Availability: OutOfStock

SKU:PSE-4b8b66

High-quality Ornit 19.0mm M10 Rivet Nut with open end design, ideal for diverse applications. Available in steel with yellow zinc finish.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Ornit P-Series 19.0mm Dimension L and M10 Thread Size Open End Cylindrical Head Rivet Nut is crafted from high-quality steel with a durable yellow zinc plated finish. Featuring an open end design with a flat cylindrical head, this rivet nut offers a grip range between 2.5mm and 4.0mm, making it versatile and reliable for various applications. With available options in stainless steel and aluminum, along with serration style variants, this rivet nut provides flexibility and precision for your fastening needs.

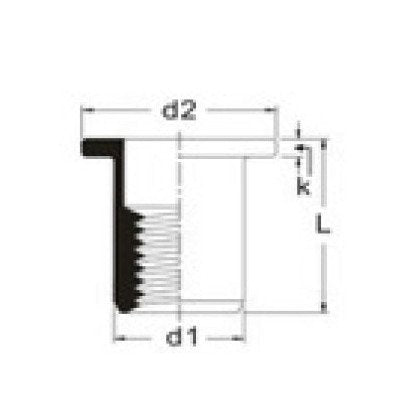

Product Specifications

Dimensions Dimension D1

13.0 mm

Dimensions Dimension D2

16.3 mm

Dimensions Dimension K

1.5 mm

Dimensions Dimension L

19.0 mm

Dimensions Hole Size

13.1 mm

Dimensions Maximum Grip Range

4.0 mm

Dimensions Minimum Grip Range

2.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Cylindrical Head (Flat)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

M10

Ornit P-Series 19.0mm M10 Open End Rivet Nut
