Ornit P-Series 26.0mm M8 Flat Rivet Nut
Ornit P-Series 26.0mm M8 Flat Rivet Nut
SKU:PSE-9d9e3b
Ornit P-Series 26.0mm M8 Rivet Nut, Steel, Yellow Zinc Plated, Cylindrical Head, Secure Grip Range 0.5-3.0mm
Regular price
$23.99
Regular price
Sale price
$23.99
Unit price
per
Initiate Order
Ornit P-Series 26.0mm M8 Flat Rivet Nut
$23.99
Quantity: 1
Claim Your Seller Account
Ornit P-Series 26.0mm M8 Flat Rivet Nut
$23.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

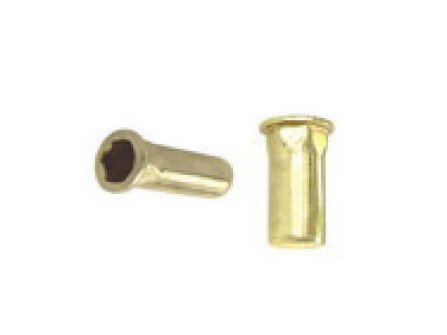

The Ornit P-Series Open End Cylindrical Head (Flat) Rivet Nut is a premium fastening solution for industrial applications. Constructed from high-quality steel with a yellow zinc plated finish, this rivet nut offers durability and corrosion resistance. With a 26.0mm Dimension L and M8 Thread Size, it provides a secure grip range of 0.5mm to 3.0mm. The cylindrical head design ensures a flush fit, making it ideal for structural assembly and machinery. Available in stainless steel and aluminum variants, with serration style options for added versatility.

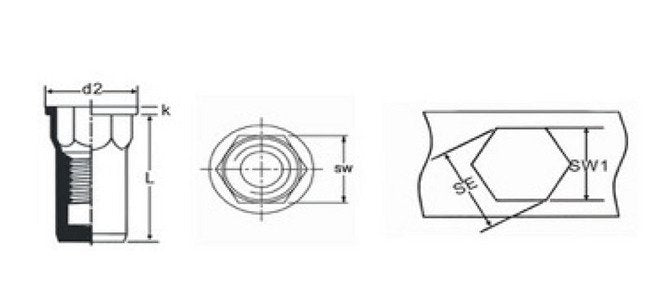

Product Specifications
Dimensions Dimension D2
14.5 mm
Dimensions Dimension K
1.5
Dimensions Dimension L
26.0 mm
Dimensions Dimension Se
12.4 mm
Dimensions Dimension Sw
11.0 mm
Dimensions Dimension Sw1
11.1 mm
Dimensions Maximum Grip Range
3.0 mm
Dimensions Minimum Grip Range
0.5 mm
Note Note
Stainless Steel & Aluminum are available. Serration style is available.
Technical Specs Brands
Ornit
Technical Specs Finish
Yellow Zinc Plated
Technical Specs Head Style
Cylindrical Head (Flat)
Technical Specs Material
Steel
Technical Specs Rivet Type
Open End
Technical Specs Thread Size
M8
