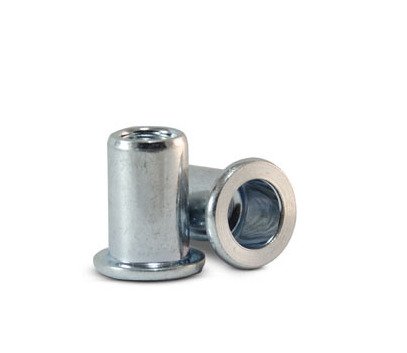

Ornit P-Series M10 Flat Rivet Nut, 17.5mm L

Name: Ornit P-Series M10 Flat Rivet Nut, 17.5mm L
Brand: Ornit USA
SKU: PSE-208cca
Price: 29.99 USD
Availability: OutOfStock

SKU:PSE-208cca

High-quality Ornit P-Series M10 Flat Rivet Nut for secure and durable fastening in various applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Ornit P-Series 17.5mm Dimension L and M10 Thread Size Open End Cylindrical Head (Flat) Rivet Nut is a versatile fastening solution suitable for various applications. Constructed from high-quality steel with a yellow zinc plated finish, it offers durability and corrosion resistance. With a grip range of 1.0mm to 2.5mm and a precise hole size of 13.1mm, this rivet nut ensures secure and reliable fastening. Additionally, options for Stainless Steel and Aluminum materials are available, along with serration style customization, catering to diverse project requirements.

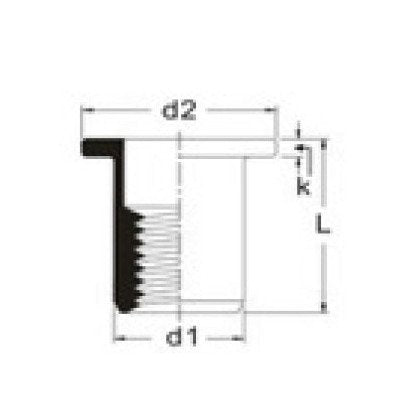

Product Specifications

Dimensions Dimension D1

13.0 mm

Dimensions Dimension D2

16.3 mm

Dimensions Dimension K

1.5 mm

Dimensions Dimension L

17.5 mm

Dimensions Hole Size

13.1 mm

Dimensions Maximum Grip Range

2.5 mm

Dimensions Minimum Grip Range

1.0 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Cylindrical Head (Flat)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

M10

Ornit P-Series M10 Flat Rivet Nut, 17.5mm L
