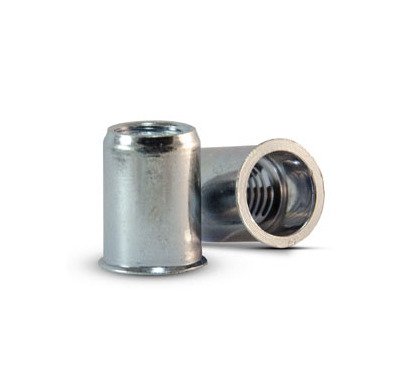

Ornit P-Series M10 Open End CSK Rivet Nut 18.0mm Steel Yellow Zinc Plated

Name: Ornit P-Series M10 Open End CSK Rivet Nut 18.0mm Steel Yellow Zinc Plated
Brand: Ornit USA
SKU: PSE-77ce48
Price: 12.99 USD
Availability: OutOfStock

SKU:PSE-77ce48

High-strength M10 open end CSK rivet nut with 18.0mm dimension for secure and lasting connections in steel, yellow zinc plated finish.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Ornit P-Series 18.0mm Dimension L M10 Thread Size Open End Countersunk Head Rivet Nut is a versatile and durable fastening solution designed for a wide range of applications. Made of high-quality steel with a yellow zinc plated finish, this rivet nut offers exceptional strength and corrosion resistance. With a maximum grip range of 4.0mm and serration style options available, it ensures a secure and lasting connection. Ideal for both consumer and institutional needs, this rivet nut meets stringent procurement standards and is available in stainless steel and aluminum variants.

Product Specifications

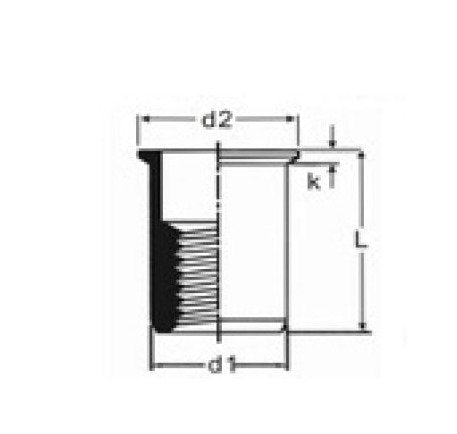

Dimensions Dimension D1

13.0 mm

Dimensions Dimension D2

14.0 mm

Dimensions Dimension K

0.5 mm

Dimensions Dimension L

18.0 mm

Dimensions Hole Size

13.1 mm

Dimensions Maximum Grip Range

4.0 mm

Dimensions Minimum Grip Range

2.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Countersunk Head (CSK)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

M10

Ornit P-Series M10 Open End CSK Rivet Nut 18.0mm Steel Yellow Zinc Plated
