Ornit P-Series M10 Open End CSK Rivet Nut, 24.5mm L

Name: Ornit P-Series M10 Open End CSK Rivet Nut, 24.5mm L
Brand: Ornit USA
SKU: PSE-897bd3
Price: 14.99 USD
Availability: OutOfStock

SKU:PSE-897bd3

Durable Ornit P-Series M10 Rivet Nut for secure fastening, available in various materials and styles.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

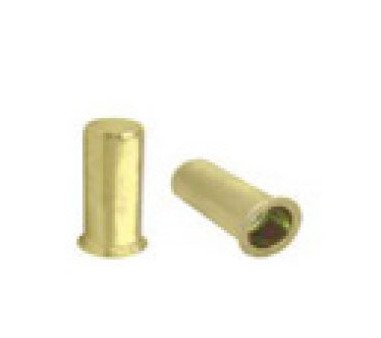

The Ornit P-Series Open End Countersunk Head Rivet Nut in M10 Thread Size offers superior durability with its steel construction and yellow zinc plated finish. With dimensions carefully engineered for a minimum grip range of 1.0mm and a maximum grip range of 2.5mm, this rivet nut ensures secure fastening in various applications. Explore options in stainless steel, aluminum, and serration style for added versatility.

Product Specifications

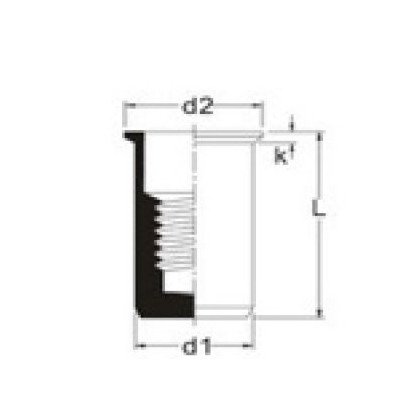

Dimensions Dimension D1

13.0 mm

Dimensions Dimension D2

14.0 mm

Dimensions Dimension K

0.5 mm

Dimensions Dimension L

24.5 mm

Dimensions Hole Size

13.1 mm

Dimensions Maximum Grip Range

2.5 mm

Dimensions Minimum Grip Range

1.0 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Countersunk Head (CSK)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

M10

Ornit P-Series M10 Open End CSK Rivet Nut, 24.5mm L
