Ornit P-Series M10 Rivet Nut, 28.0mm Dimension L, Open End Cylindrical Head

Name: Ornit P-Series M10 Rivet Nut, 28.0mm Dimension L, Open End Cylindrical Head
Brand: Ornit USA
SKU: PSE-dc7873
Price: 12.99 USD
Availability: OutOfStock

SKU:PSE-dc7873

Secure, durable Ornit P-Series M10 Rivet Nut with 28.0mm Dimension L for precise fastening needs.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

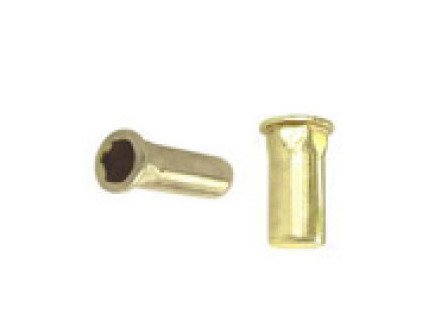

Experience superior fastening with the Ornit P-Series M10 Rivet Nut featuring a steel construction with yellow zinc plating. This rivet nut boasts precise dimensions including a 28.0mm Dimension L, accommodating grip ranges from 1.0mm to 4.0mm. The cylindrical head design ensures a secure fit, offering options for stainless steel and aluminum materials. Meet your fastening needs efficiently with this versatile and compliant rivet nut.

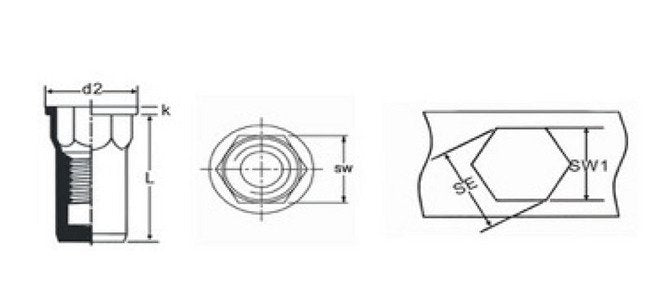

Product Specifications

Dimensions Dimension D2

16.3 mm

Dimensions Dimension K

2.0

Dimensions Dimension L

28.0 mm

Dimensions Dimension Se

14.7 mm

Dimensions Dimension Sw

13.0 mm

Dimensions Dimension Sw1

13.1 mm

Dimensions Maximum Grip Range

4.0 mm

Dimensions Minimum Grip Range

1.0 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Cylindrical Head (Flat)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

M10

Ornit P-Series M10 Rivet Nut, 28.0mm Dimension L, Open End Cylindrical Head
