Ornit P-Series M10 Steel Rivet Nut
Ornit P-Series M10 Steel Rivet Nut
SKU:PSE-36dc2e
Durable Ornit P-Series M10 Steel Rivet Nut with precise dimensions & high-quality finish. Compliant with industry standards.
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
per
Initiate Order
Ornit P-Series M10 Steel Rivet Nut
$15.99
Quantity: 1
Claim Your Seller Account
Ornit P-Series M10 Steel Rivet Nut
$15.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

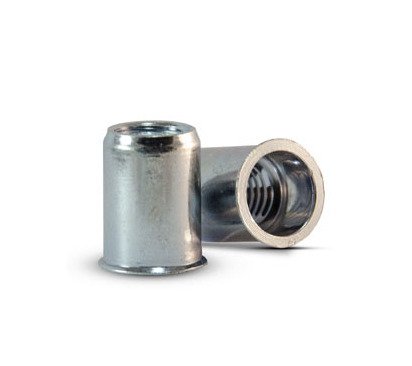

The Ornit P-Series 16.5mm Dimension L M10 Thread Size Open End Countersunk Head Rivet Nut is an essential fastener for industrial applications. Made of durable steel with a yellow zinc plated finish, this rivet nut offers a secure grip range of 1.0mm to 2.5mm. Its precise dimensions and high-quality construction ensure reliable performance under pressure. Available in stainless steel and aluminum variants, with optional serration style. Compliant with Federal/DoD procurement standards, GSA requirements, and industry-specific certifications.

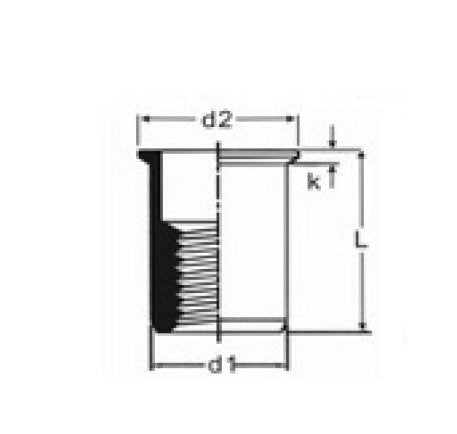

Product Specifications
Dimensions Dimension D1
13.0 mm
Dimensions Dimension D2
14.0 mm
Dimensions Dimension K
0.5 mm
Dimensions Dimension L
16.5 mm
Dimensions Hole Size
13.1 mm
Dimensions Maximum Grip Range
2.5 mm
Dimensions Minimum Grip Range
1.0 mm
Note Note
Stainless Steel & Aluminum are available. Serration style is available.
Technical Specs Brands
Ornit
Technical Specs Finish
Yellow Zinc Plated
Technical Specs Head Style
Countersunk Head (CSK)
Technical Specs Material
Steel
Technical Specs Rivet Type
Open End
Technical Specs Thread Size
M10
