Ornit P-Series M3 Open End CSK Rivet Nut 10.0mm

Name: Ornit P-Series M3 Open End CSK Rivet Nut 10.0mm
Brand: Ornit USA
SKU: PSE-b37dca
Price: 24.99 USD
Availability: OutOfStock

SKU:PSE-b37dca

High-quality Ornit P-Series M3 Rivet Nut for secure and versatile fastening needs. Steel with yellow zinc plating, 10.0mm dimension, grip range 1.5-2.5mm.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

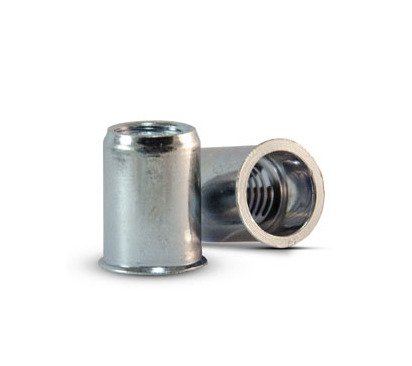

The Ornit P-Series 10.0mm Open End Countersunk Head (CSK) Rivet Nut is designed for secure fastening applications. Made of high-quality steel with yellow zinc plating, it offers durability and corrosion resistance. With a precise M3 thread size and a grip range of 1.5mm to 2.5mm, this rivet nut is versatile and reliable. Available in stainless steel and aluminum options with serration style variants for varied needs.

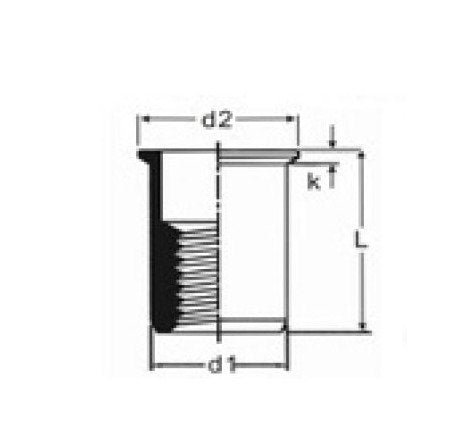

Product Specifications

Dimensions Dimension D1

5.0 mm

Dimensions Dimension D2

6.0 mm

Dimensions Dimension K

0.5 mm

Dimensions Dimension L

10.0 mm

Dimensions Hole Size

5.1 mm

Dimensions Maximum Grip Range

2.5 mm

Dimensions Minimum Grip Range

1.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Countersunk Head (CSK)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

Ornit P-Series M3 Open End CSK Rivet Nut 10.0mm
