Ornit P-Series M3 Steel Rivet Nut, 9.5mm L, Cylindrical Flat Head
Ornit P-Series M3 Steel Rivet Nut, 9.5mm L, Cylindrical Flat Head
SKU:PSE-304afd
Premium Ornit P-Series 9.5mm Cylindrical Flat Head Rivet Nut, M3, Steel, Yellow Zinc Plated
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Ornit P-Series M3 Steel Rivet Nut, 9.5mm L, Cylindrical Flat Head
$12.99
Quantity: 1
Claim Your Seller Account
Ornit P-Series M3 Steel Rivet Nut, 9.5mm L, Cylindrical Flat Head
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

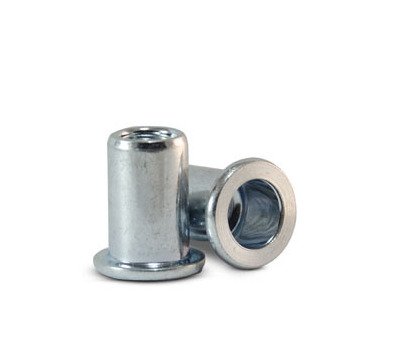

The Ornit P-Series 9.5mm Cylindrical Flat Head Rivet Nut is a high-quality and durable solution for secure fastening applications. Made of steel with a yellow zinc-plated finish, it offers excellent corrosion resistance. With a precise M3 thread size and dimensions meeting stringent grip range requirements, this rivet nut ensures reliable performance. Available in stainless steel and aluminum options, it also features a serration style design for added versatility and customization. Ideal for industrial, automotive, and aerospace uses, this rivet nut delivers exceptional strength and durability.

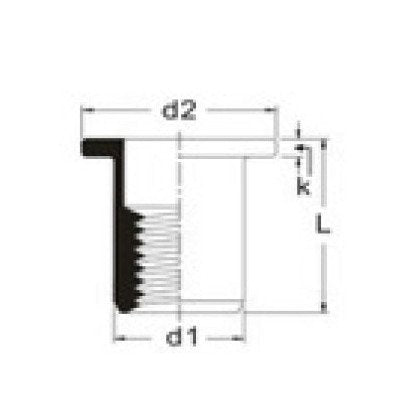

Product Specifications
Dimensions Dimension D1
5.0 mm
Dimensions Dimension D2
8.3 mm
Dimensions Dimension K
0.8 mm
Dimensions Dimension L
9.5 mm
Dimensions Hole Size
5.1 mm
Dimensions Maximum Grip Range
1.5 mm
Dimensions Minimum Grip Range
0.5 mm
Note Note
Stainless Steel & Aluminum are available. Serration style is available.
Technical Specs Brands
Ornit
Technical Specs Finish
Yellow Zinc Plated
Technical Specs Head Style
Cylindrical Head (Flat)
Technical Specs Material
Steel
Technical Specs Rivet Type
Open End
Technical Specs Thread Size
M3
