Ornit P-Series M4 CSK Rivet Nut, 12.5mm

Name: Ornit P-Series M4 CSK Rivet Nut, 12.5mm
Brand: Ornit USA
SKU: PSE-b67850
Price: 29.99 USD
Availability: OutOfStock

SKU:PSE-b67850

Ornit P-Series Rivet Nut: Strong steel construction with yellow zinc plating, M4 thread size, versatile and durable.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

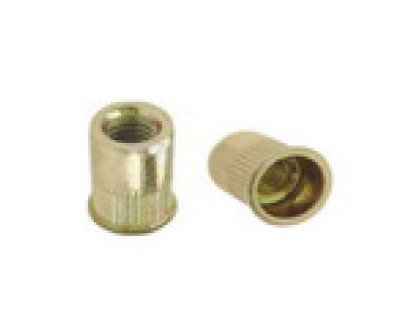

The Ornit P-Series Open End Countersunk Head Rivet Nut features a strong steel construction with yellow zinc plating, providing durability and corrosion resistance. With precise dimensions and a versatile M4 thread size, it offers a minimum grip range of 2.5mm and a maximum of 3.5mm. This rivet nut is designed for reliability in fastening applications, with options for stainless steel or aluminum materials and serration style customization. It meets stringent industry standards for quality and performance.

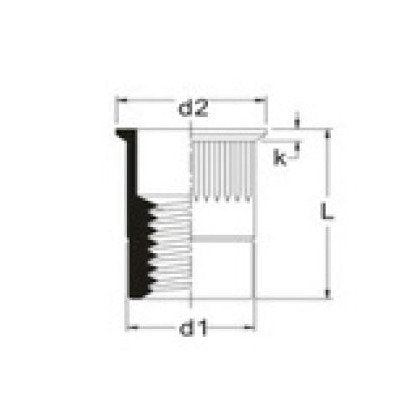

Product Specifications

Dimensions Dimension D1

6.0 mm

Dimensions Dimension D2

7.0 mm

Dimensions Dimension K

0.5 mm

Dimensions Dimension L

12.5 mm

Dimensions Hole Size

6.1 mm

Dimensions Maximum Grip Range

3.5 mm

Dimensions Minimum Grip Range

2.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Countersunk Head (CSK)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

Ornit P-Series M4 CSK Rivet Nut, 12.5mm
