Ornit P-Series M4 CSK Rivet Nut, 15.0mm L

Name: Ornit P-Series M4 CSK Rivet Nut, 15.0mm L
Brand: Ornit USA
SKU: PSE-493e94
Price: 24.99 USD
Availability: OutOfStock

SKU:PSE-493e94

High-quality Ornit P-Series Rivet Nut for secure and durable fastening. Available in various materials and finishes for versatile use.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

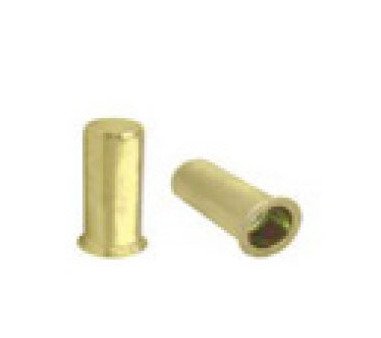

The Ornit P-Series 15.0mm Dimension L M4 Thread Size Open End Countersunk Head (CSK) Rivet Nut is a robust and reliable fastening solution made of high-quality steel with a yellow zinc plated finish. With minimum grip range of 0.5mm and maximum grip range of 1.5mm, it ensures secure and durable connections. This Rivet Nut also offers options in Stainless Steel & Aluminum, with serration style available for added versatility. Ideal for a wide range of applications, it meets stringent procurement standards and is designed for maximum performance.

Product Specifications

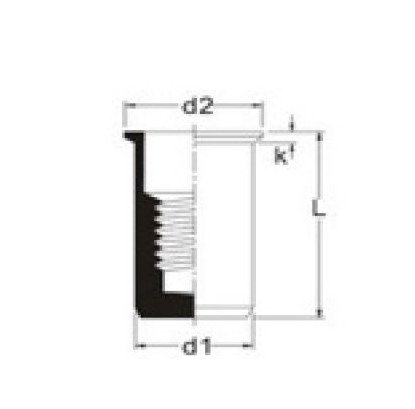

Dimensions Dimension D1

6.0 mm

Dimensions Dimension D2

7.0 mm

Dimensions Dimension K

0.5 mm

Dimensions Dimension L

15.0 mm

Dimensions Hole Size

6.1 mm

Dimensions Maximum Grip Range

1.5 mm

Dimensions Minimum Grip Range

0.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Countersunk Head (CSK)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

Ornit P-Series M4 CSK Rivet Nut, 15.0mm L
