Ornit P-Series M5 12.0mm Flat Rivet Nut

Name: Ornit P-Series M5 12.0mm Flat Rivet Nut
Brand: Ornit USA
SKU: PSE-ead699
Price: 14.99 USD
Availability: OutOfStock

SKU:PSE-ead699

Ornit P-Series 12.0mm Flat Rivet Nut, steel construction with M5 thread size and yellow zinc finish. Offers 0.5-1.5mm grip range. Compliant with multiple standards.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

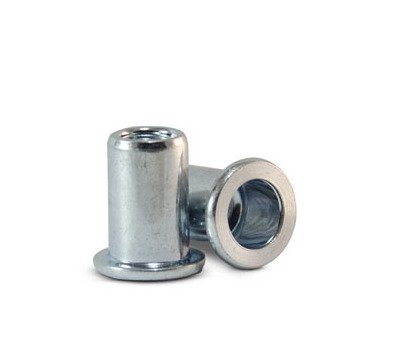

The Ornit P-Series 12.0mm Flat Rivet Nut is a high-quality fastener designed for a wide range of applications. Constructed from steel with a yellow zinc plated finish, this rivet nut offers durability and corrosion resistance. Featuring an M5 thread size and a cylindrical flat head, it provides a secure grip range of 0.5mm to 1.5mm. With options for stainless steel and aluminum materials, as well as serration style, this versatile rivet nut meets various procurement standards, making it ideal for institutional and government buyers.

Product Specifications

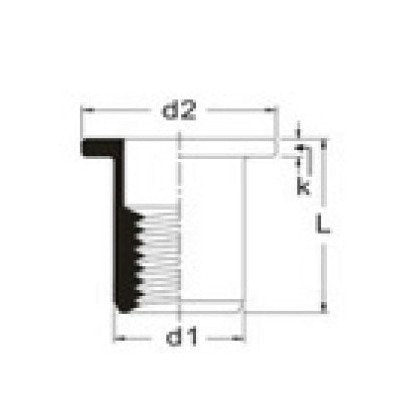

Dimensions Dimension D1

7.0 mm

Dimensions Dimension D2

10.3 mm

Dimensions Dimension K

1.0 mm

Dimensions Dimension L

12.0 mm

Dimensions Hole Size

7.1 mm

Dimensions Maximum Grip Range

1.5 mm

Dimensions Minimum Grip Range

0.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Cylindrical Head (Flat)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

Ornit P-Series M5 12.0mm Flat Rivet Nut
