Ornit P-Series M5 CSK Rivet Nut, 18.5mm L

Name: Ornit P-Series M5 CSK Rivet Nut, 18.5mm L
Brand: Ornit USA
SKU: PSE-80dd30
Price: 14.99 USD
Availability: OutOfStock

SKU:PSE-80dd30

Ornit P-Series 18.5mm M5 CSK Rivet Nut for precise and durable fastenings in steel with options for different materials and finish.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

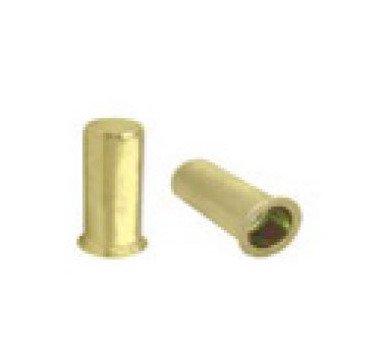

The Ornit P-Series 18.5mm Dimension L and M5 Thread Size Open End Countersunk Head (CSK) Rivet Nut is a premium solution for fastening applications in steel with a durable Yellow Zinc Plated finish. With a grip range from 2.5mm to 3.5mm, precise dimensions, and options for Stainless Steel or Aluminum, this rivet nut offers versatility and reliability. Its high-quality construction and serration style ensure secure fastenings, meeting stringent procurement standards.

Product Specifications

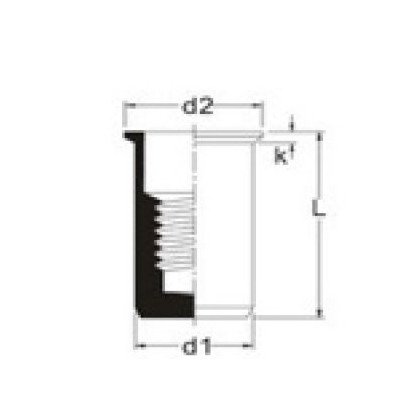

Dimensions Dimension D1

7.0 mm

Dimensions Dimension D2

8.0 mm

Dimensions Dimension K

0.5 mm

Dimensions Dimension L

18.5 mm

Dimensions Hole Size

7.1 mm

Dimensions Maximum Grip Range

3.5 mm

Dimensions Minimum Grip Range

2.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Countersunk Head (CSK)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

Ornit P-Series M5 CSK Rivet Nut, 18.5mm L
