Ornit P-Series M5 Thread Open End CSK Rivet Nut - 12.0mm

Name: Ornit P-Series M5 Thread Open End CSK Rivet Nut - 12.0mm
Brand: Ornit USA
SKU: PSE-c433b5
Price: 14.99 USD
Availability: OutOfStock

SKU:PSE-c433b5

High-quality Ornit P-Series M5 CSK Rivet Nut - 12.0mm, Steel with Zinc Plating

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Ornit P-Series Open End Countersunk Head (CSK) Rivet Nut in M5 thread size is crafted from steel with a yellow zinc plated finish. With dimensions of 12.0mm (L), a grip range of 1.5mm to 2.5mm, and a hole size of 7.1mm, this rivet nut offers durability and reliability. Ideal for various applications, it can also be made with stainless steel or aluminum, and features serration style options.

Product Specifications

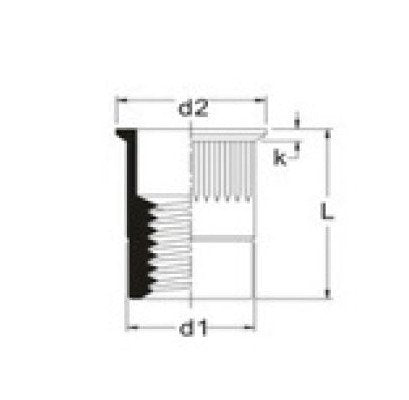

Dimensions Dimension D1

7.0 mm

Dimensions Dimension D2

8.0 mm

Dimensions Dimension K

0.5 mm

Dimensions Dimension L

12.0 mm

Dimensions Hole Size

7.1 mm

Dimensions Maximum Grip Range

2.5 mm

Dimensions Minimum Grip Range

1.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Countersunk Head (CSK)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

Ornit P-Series M5 Thread Open End CSK Rivet Nut - 12.0mm
