Ornit P-Series M5 Thread Rivet Nut - 16.0mm L, Open End Cylindrical Head
Ornit P-Series M5 Thread Rivet Nut - 16.0mm L, Open End Cylindrical Head
SKU:PSE-8d60bd
Ornit P-Series M5 Rivet Nut, 16.0mm L, Open End Cylindrical Head - Durable, Reliable, Easy Installation
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Ornit P-Series M5 Thread Rivet Nut - 16.0mm L, Open End Cylindrical Head
$12.99
Quantity: 1
Claim Your Seller Account
Ornit P-Series M5 Thread Rivet Nut - 16.0mm L, Open End Cylindrical Head
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

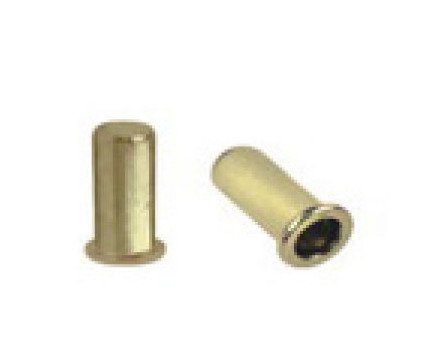

The Ornit P-Series 16.0mm Dimension L Rivet Nut with an M5 Thread Size features a durable Steel construction with Yellow Zinc Plating. It is designed with an Open End and a Cylindrical Head (Flat) for easy installation and secure fastening. With a Grip Range of 0.5mm to 1.5mm and various material options available, this rivet nut offers versatility and reliability in fastening applications. Ideal for industrial and government procurement needs.
Product Specifications

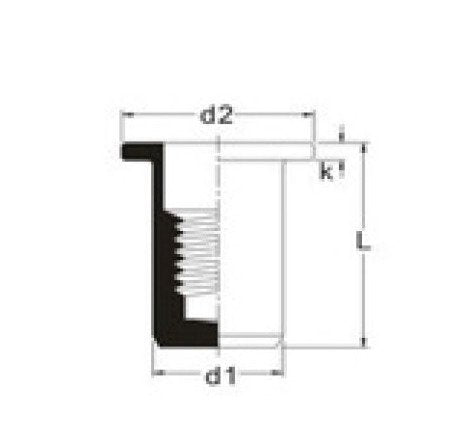

Dimensions Dimension D1
7.0 mm
Dimensions Dimension D2
10.0 mm
Dimensions Dimension K
1.0 mm
Dimensions Dimension L
16.0 mm
Dimensions Hole Size
7.1 mm
Dimensions Maximum Grip Range
1.5 mm
Dimensions Minimum Grip Range
0.5 mm
Note Note
Stainless Steel & Aluminum are available. Serration style is available.
Technical Specs Brands
Ornit
Technical Specs Finish
Yellow Zinc Plated
Technical Specs Head Style
Cylindrical Head (Flat)
Technical Specs Material
Steel
Technical Specs Rivet Type
Open End
Technical Specs Thread Size
M5
