Ornit P-Series M6 Open End CSK Rivet Nut - 14.0mm

Name: Ornit P-Series M6 Open End CSK Rivet Nut - 14.0mm
Brand: Ornit USA
SKU: PSE-c7d1d6
Price: 27.99 USD
Availability: OutOfStock

SKU:PSE-c7d1d6

Premium Ornit P-Series rivet nut - M6 thread, 14.0mm dimension, steel with yellow zinc plating. Versatile & durable for secure installations.

$27.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

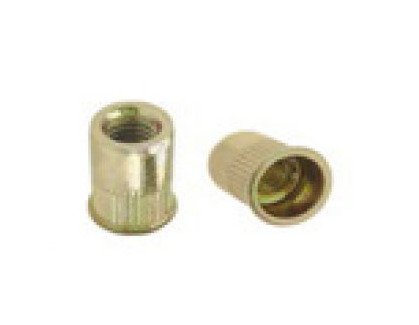

The Ornit P-Series 14.0mm M6 Open End Countersunk Head Rivet Nut is a premium fastening solution made of high-quality steel with yellow zinc plating. With a minimum grip range of 0.5mm and a maximum grip range of 2.5mm, this rivet nut is versatile and durable. Its precise dimensions and M6 thread size ensure secure installations while the option for stainless steel or aluminum provides additional flexibility. Ideal for industrial and aerospace applications.

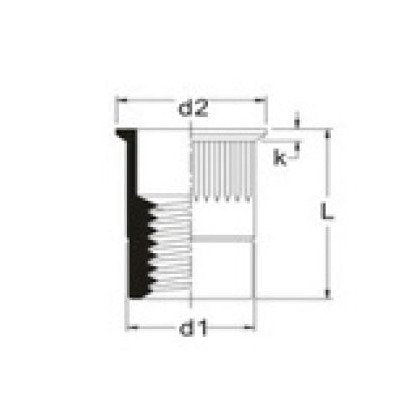

Product Specifications

Dimensions Dimension D1

9.0 mm

Dimensions Dimension D2

10.0 mm

Dimensions Dimension K

0.5 mm

Dimensions Dimension L

14.0 mm

Dimensions Hole Size

9.1 mm

Dimensions Maximum Grip Range

2.5 mm

Dimensions Minimum Grip Range

0.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Countersunk Head (CSK)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

Ornit P-Series M6 Open End CSK Rivet Nut - 14.0mm
