Ornit P-Series M6 Rivet Nut, 17.0mm L, Cylindrical Head (Flat)

Name: Ornit P-Series M6 Rivet Nut, 17.0mm L, Cylindrical Head (Flat)
Brand: Ornit USA
SKU: PSE-b3070c
Price: 14.99 USD
Availability: OutOfStock

SKU:PSE-b3070c

High-quality steel rivet nut with M6 thread size, 17.0mm length, and durable finish for reliable industrial fastening.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Ornit P-Series 17.0mm Dimension L and M6 Thread Size Open End Cylindrical Head (Flat) Rivet Nut is a premium fastening solution for industrial applications. Made of high-quality steel with a durable yellow zinc plated finish, this rivet nut offers a secure grip range of 2.5mm to 4.0mm. It features a precise hole size of 9.1mm and dimensions d1, d2, and k for seamless installation. Available in stainless steel & aluminum with serration style options, this rivet nut meets stringent procurement standards for reliability and performance.

Product Specifications

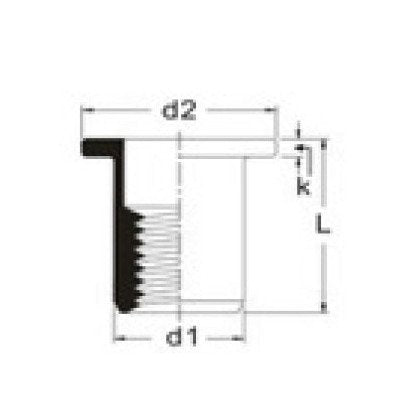

Dimensions Dimension D1

9.0 mm

Dimensions Dimension D2

12.3 mm

Dimensions Dimension K

1.5 mm

Dimensions Dimension L

17.0 mm

Dimensions Hole Size

9.1 mm

Dimensions Maximum Grip Range

4.0 mm

Dimensions Minimum Grip Range

2.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Cylindrical Head (Flat)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

Ornit P-Series M6 Rivet Nut, 17.0mm L, Cylindrical Head (Flat)
