Ornit P-Series M6 Thread Cylindrical Rivet Nut, 21.0mm L, Flat Head

Name: Ornit P-Series M6 Thread Cylindrical Rivet Nut, 21.0mm L, Flat Head
Brand: Ornit USA
SKU: PSE-c57587
Price: 12.99 USD
Availability: OutOfStock

SKU:PSE-c57587

Premium Ornit P-Series M6 Rivet Nut - High-quality steel, 21.0mm length, secure grip, versatile options.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

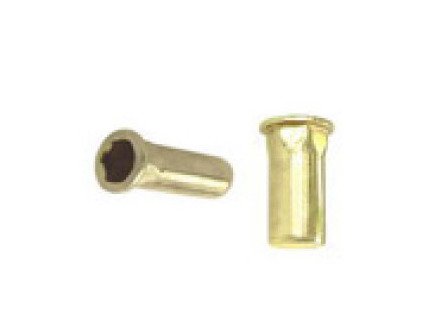

The Ornit P-Series Open End Cylindrical Head (Flat) Rivet Nut in M6 Thread Size is manufactured from high-quality steel with a yellow zinc plated finish. Its precise dimensions, including a 21.0mm length and various grip ranges, ensure secure fastening. With options for Stainless Steel and Aluminum as well as serration styles, this rivet nut offers versatility and durability for a wide range of applications. Compliant with Federal/DoD procurement and industry-specific certifications.

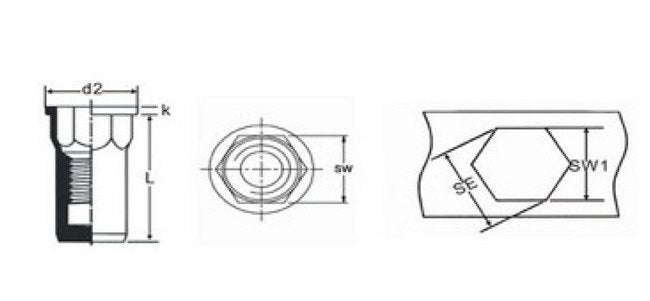

Product Specifications

Dimensions Dimension D2

12.3 mm

Dimensions Dimension K

1.5

Dimensions Dimension L

21.0 mm

Dimensions Dimension Se

10.2 mm

Dimensions Dimension Sw

9.0 mm

Dimensions Dimension Sw1

9.1 mm

Dimensions Maximum Grip Range

3.0 mm

Dimensions Minimum Grip Range

0.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Cylindrical Head (Flat)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

Ornit P-Series M6 Thread Cylindrical Rivet Nut, 21.0mm L, Flat Head
