Ornit P-Series M8 Countersunk Head Rivet Nut, 23.0mm L

Name: Ornit P-Series M8 Countersunk Head Rivet Nut, 23.0mm L
Brand: Ornit USA
SKU: PSE-dd3810
Price: 14.99 USD
Availability: OutOfStock

SKU:PSE-dd3810

Ornit P-Series M8 Countersunk Rivet Nut, 23.0mm L - High-quality steel with yellow zinc finish, precise dimensions for secure grip. Versatile & durable.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Ornit P-Series 23.0mm Dimension L & M8 Thread Size Open End Countersunk Head Rivet Nut is a premium fastening solution for industrial applications. Constructed from high-quality steel with a yellow zinc plated finish, it offers durability and corrosion resistance. Its precision dimensions ensure a secure grip range of 1.0mm to 2.5mm, meeting stringent quality standards. Compatible with 11.1mm hole size, this rivet nut is versatile, offering options for stainless steel & aluminum materials. The serration style variant adds versatility to this reliable and efficient fastening hardware.

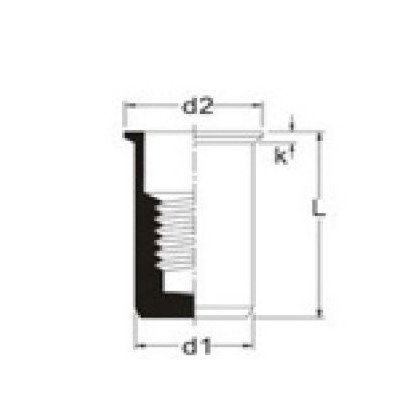

Product Specifications

Dimensions Dimension D1

11.0 mm

Dimensions Dimension D2

12.0 mm

Dimensions Dimension K

0.5 mm

Dimensions Dimension L

23.0 mm

Dimensions Hole Size

11.1 mm

Dimensions Maximum Grip Range

2.5 mm

Dimensions Minimum Grip Range

1.0 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Countersunk Head (CSK)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

Ornit P-Series M8 Countersunk Head Rivet Nut, 23.0mm L
