Ornit P-Series M8 Open End CSK Rivet Nut (24.5mm L)

Name: Ornit P-Series M8 Open End CSK Rivet Nut (24.5mm L)
Brand: Ornit USA
SKU: PSE-a70166
Price: 12.99 USD
Availability: OutOfStock

SKU:PSE-a70166

Ornit P-Series M8 Rivet Nut - Strong, Zinc Plated, Easy to Install

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

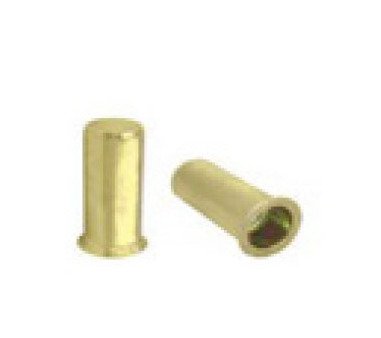

The Ornit P-Series Open End Countersunk Head (CSK) Rivet Nut features a durable steel construction with a yellow zinc plated finish. With a thread size of M8 and dimensions of 24.5mm (L), this rivet nut offers a secure grip range between 2.5mm to 4.0mm. Ideal for various applications, including stainless steel and aluminum options, this rivet nut provides strength, reliability, and easy installation. Compliant with federal procurement standards, this product ensures quality and performance for industrial and institutional use.

Product Specifications

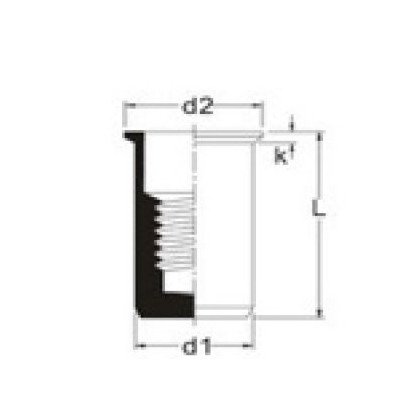

Dimensions Dimension D1

11.0 mm

Dimensions Dimension D2

12.0 mm

Dimensions Dimension K

0.5 mm

Dimensions Dimension L

24.5 mm

Dimensions Hole Size

11.1 mm

Dimensions Maximum Grip Range

4.0 mm

Dimensions Minimum Grip Range

2.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Countersunk Head (CSK)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

Ornit P-Series M8 Open End CSK Rivet Nut (24.5mm L)
