Ornit P-Series M8 Open End Rivet Nut, 18.5mm

Name: Ornit P-Series M8 Open End Rivet Nut, 18.5mm
Brand: Ornit USA
SKU: PSE-c8b421
Price: 12.99 USD
Availability: OutOfStock

SKU:PSE-c8b421

Ornit P-Series M8 Rivet Nut: Steel construction with yellow zinc finish. Grip range 2.5-4.0mm.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Ornit P-Series Open End Cylindrical Head (Flat) Rivet Nut in M8 thread size is a versatile fastener for a secure grip range of 2.5mm to 4.0mm. Made of steel with a yellow zinc finish, it offers durability and corrosion resistance. With options for stainless steel & aluminum and serration style, this rivet nut meets high-quality standards for various applications.

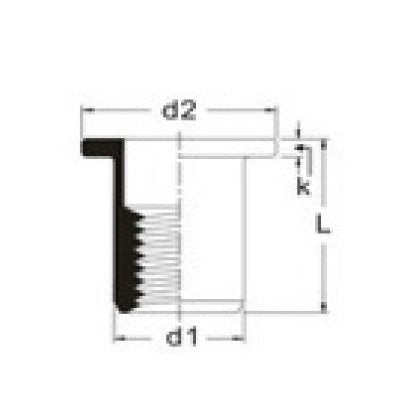

Product Specifications

Dimensions Dimension D1

11.0 mm

Dimensions Dimension D2

14.3 mm

Dimensions Dimension K

1.5 mm

Dimensions Dimension L

18.5 mm

Dimensions Hole Size

11.1 mm

Dimensions Maximum Grip Range

4.0 mm

Dimensions Minimum Grip Range

2.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Cylindrical Head (Flat)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

Ornit P-Series M8 Open End Rivet Nut, 18.5mm
