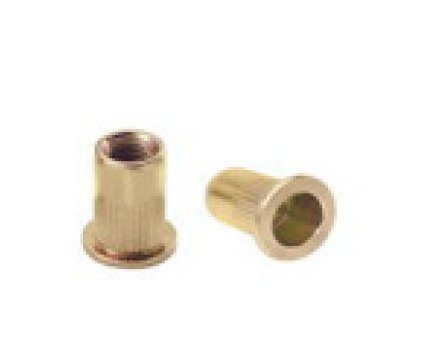

Ornit P-Series M8 Rivet Nut with Serration

Name: Ornit P-Series M8 Rivet Nut with Serration
Brand: Ornit USA
SKU: PSE-579ad1
Price: 15.99 USD
Availability: OutOfStock

SKU:PSE-579ad1

High-quality Ornit P-Series M8 Rivet Nut for secure fastening, steel construction with yellow zinc plating, versatile dimensions, serrated design for secure fit.

$15.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Ornit P-Series 18.5mm Dimension L and M8 Thread Size Open End Cylindrical Head (Flat) Rivet Nut with Serration is a versatile and durable fastening solution. Constructed from high-quality steel with a yellow zinc plated finish, this rivet nut offers exceptional strength and corrosion resistance. With dimensions designed for a minimum grip range of 2.5mm and a maximum grip range of 4.0mm, it is ideal for a wide range of applications. The serrated design ensures a secure fit, meeting the stringent requirements of government and institutional procurement standards.

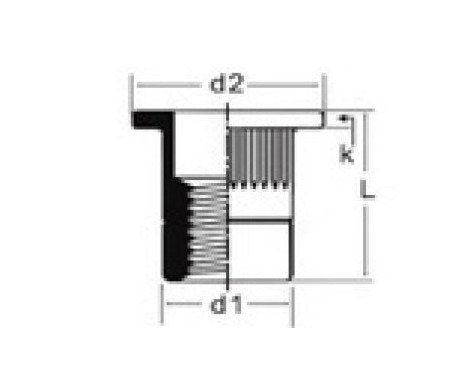

Product Specifications

Dimensions Dimension D1

11.0 mm

Dimensions Dimension D2

14.3 mm

Dimensions Dimension K

1.5 mm

Dimensions Dimension L

18.5 mm

Dimensions Hole Size

11.1 mm

Dimensions Maximum Grip Range

4.0 mm

Dimensions Minimum Grip Range

2.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Cylindrical Head (Flat)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

Ornit P-Series M8 Rivet Nut with Serration
