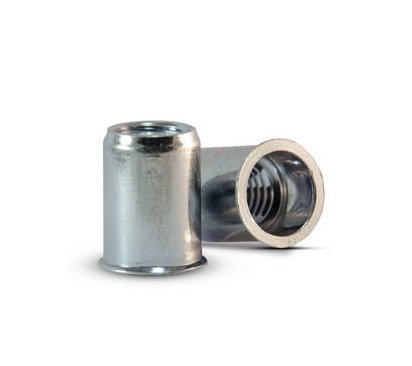

Ornit P-Series M8 Thread Open End CSK Rivet Nut, 17.0mm L

Name: Ornit P-Series M8 Thread Open End CSK Rivet Nut, 17.0mm L
Brand: Ornit USA
SKU: PSE-38586d
Price: 9.99 USD
Availability: OutOfStock

SKU:PSE-38586d

Ornit P-Series Rivet Nut - Steel, M8 Thread, 17.0mm L. Durable, secure grip range. Yellow Zinc Plated. Compliant with industry standards.

$9.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Ornit P-Series Open End Countersunk Head (CSK) Rivet Nut features a durable steel construction with a yellow zinc plated finish. With a 17.0mm Dimension L and M8 Thread Size, it offers a secure grip range of 2.5mm to 4.0mm, ideal for various applications. This versatile rivet nut also provides options for Stainless Steel & Aluminum materials and Serration style. Compliant with industry standards for reliable performance.

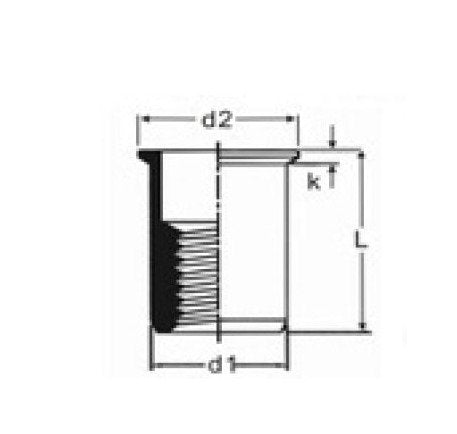

Product Specifications

Dimensions Dimension D1

11.0 mm

Dimensions Dimension D2

12.0 mm

Dimensions Dimension K

0.5 mm

Dimensions Dimension L

17.0 mm

Dimensions Hole Size

11.1 mm

Dimensions Maximum Grip Range

4.0 mm

Dimensions Minimum Grip Range

2.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Countersunk Head (CSK)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

Ornit P-Series M8 Thread Open End CSK Rivet Nut, 17.0mm L
