Ornit Protruding Head Rivet (19.0mm Body Length)
Ornit Protruding Head Rivet (19.0mm Body Length)
SKU:ORB-991f69
High-quality Ornit Protruding Head Rivet for industrial applications. Durable, corrosion-resistant, and compliant with federal procurement standards.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Ornit Protruding Head Rivet (19.0mm Body Length)
$39.99
Quantity: 1
Claim Your Seller Account
Ornit Protruding Head Rivet (19.0mm Body Length)
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

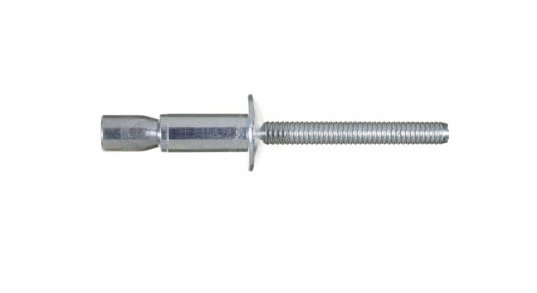

The OR-Bolt Steel 19.0mm Body Length Protruding Head Rivet by Ornit is a top-quality fastening solution designed for industrial applications. Made of low carbon steel with a zinc plated chromium VI-free finish, this rivet ensures durability and corrosion resistance. With a nominal shear force of 1250 kgf and a nominal tensile force of 1000 kgf, it provides reliable strength in demanding environments. Compliant with federal procurement standards and meeting industry-specific certifications, this rivet is a trusted choice for government and institutional buyers.
Product Specifications
Nominal Dimensions Body Length
19.0 mm | 0.748 in
Nominal Dimensions Diameter
6.5 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.62 to 6.9 mm | 0.260 to 0.271 in
Nominal Dimensions Head Diameter
13.0 mm | 0.512 in
Nominal Dimensions Head Thickness
2.6 mm | 0.102 in
Nominal Dimensions Mandrel Diameter
4.0 mm | 0.157 in
Nominal Dimensions Maximum Grip Range
15.9 mm | 0.626 in
Nominal Dimensions Minimum Grip Range
2.0 mm | 0.079 in
Nominal Forces Nominal Shear Force
1250 kgf | 2750 lbf
Nominal Forces Nominal Tensile Force
1000 kgf | 2200 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
1500
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Medium Carbon Steel
