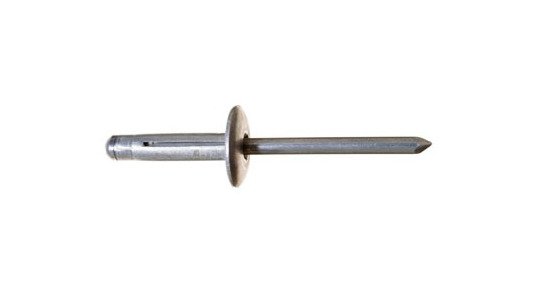

Ornit Steel Bulb Dome Head Rivet 0.677mm Body Length
Ornit Steel Bulb Dome Head Rivet 0.677mm Body Length
SKU:STE-6c212e
Premium Ornit Steel Bulb Rivet for secure assembly. Zinc finish, dome head design. Ideal for doors, rails & automotive components.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ornit Steel Bulb Dome Head Rivet 0.677mm Body Length
$29.99
Quantity: 1
Claim Your Seller Account
Ornit Steel Bulb Dome Head Rivet 0.677mm Body Length
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit Steel Bulb Dome Head Rivet is a low carbon steel fastener designed for secure assembly in various applications. With a Zinc Plated Chromium finish, this rivet ensures durability and corrosion resistance. Its dome head and multi-grip design provide a reliable grip range of 1.0mm to 6.4mm, making it ideal for doors, rails, and automotive components. Meeting industry-standard forces for shear and tensile strength, this rivet offers a highly secure joint, preventing electrical issues and corrosion. Trusted by truck drivers worldwide, the Ornit rivet is a dependable choice for securing transport goods.
Product Specifications
Dimensions Automotive Application

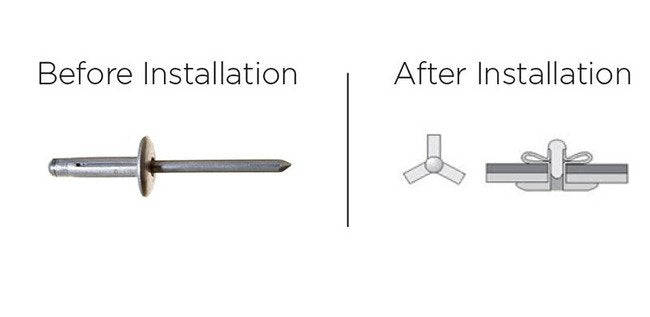

InteriorThe Or Bulb is an aluminum alloy, multi-grip fastener with split tail that forms a large blind side area. It creates a highly secure joint in variety of components within your vehicle.
Nominal Dimensions Body Length
17.2 mm | 0.677 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
5.0 to 5.2 mm | 0.196 to 0.205 in
Nominal Dimensions Head Diameter
9.8 mm | 0.386 in
Nominal Dimensions Head Thickness
1.80 mm | 0.071 in
Nominal Dimensions Mandrel Diameter
2.9 mm | 0.114 in
Nominal Dimensions Maximum Grip Range
6.4 mm | 0.252 in
Nominal Dimensions Minimum Grip Range
1.0 mm | 0.039 in
Nominal Forces Nominal Shear Force
204 kgf | 450 lbf
Nominal Forces Nominal Tensile Force
255 kgf | 561 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) IV Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
1000
Technical Specs Head Style
Dome Head
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) IV Free
Technical Specs Mandrel Material
Carbon Steel
