Ornit Super Orlock 18.5mm Protruding Head Rivet
Ornit Super Orlock 18.5mm Protruding Head Rivet
SKU:SUP-e1858d
High-strength Ornit Super Orlock 18.5mm Protruding Head Rivet for secure rail transport joints. Low carbon steel, zinc-plated chromium finish, wide grip range.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ornit Super Orlock 18.5mm Protruding Head Rivet
$29.99
Quantity: 1
Claim Your Seller Account
Ornit Super Orlock 18.5mm Protruding Head Rivet
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

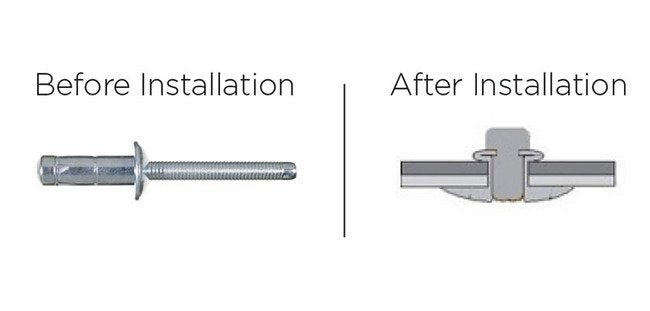

The Ornit Super Orlock 18.5mm Protruding Head Rivet is a premium fastening solution designed for applications requiring extra-high forces. Manufactured from low carbon steel with a zinc-plated chromium finish, this rivet boasts superior shear and tensile strengths, offering a wider grip range for secure joints. With a body length of 18.5mm and nominal forces of 1570 kgf shear force and 810 kgf tensile force, this rivet is ideal for rail transport applications like cable cars and trains, ensuring vibration resistance and reliability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications Rail Transport Application
Cable CarWhen extra forces are required, the Super Orlock⢠is the solution. The Super Orlock⢠provides higher shear and tensile strengths, a wider grip range and creates an extremely secure, vibration-resistant joint. The stainless steel version is also commonly used for this type of application.TrainsWhen extra forces are required, the Super Orlock⢠is the solution. The Super Orlock⢠provides higher shear and tensile strengths, a wider grip range and creates an exceptionally secure, vibrationâresistant joint. The stainless steel version is also available in a variety of grades.
Nominal Dimensions Body Length
18.5 mm | 0.728 in
Nominal Dimensions Diameter
6.5 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.7 to 6.9 mm | 0.263 to 0.271 in
Nominal Dimensions Head Diameter
13.0 mm | 0.512 in
Nominal Dimensions Head Thickness
3.0 mm | 0.118 in
Nominal Dimensions Mandrel Diameter
4.17 mm | 0.164 in
Nominal Dimensions Maximum Grip Range
12.5 mm | 0.492 in
Nominal Dimensions Minimum Grip Range
9.0 mm | 0.354 in
Nominal Forces Nominal Shear Force
1570 kgf | 3454 lbf
Nominal Forces Nominal Tensile Force
810 kgf | 1782 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Orlock⢠| Ornit
Technical Specs Carton Quantity
1500
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
