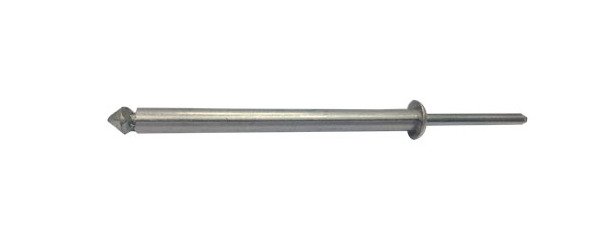

Ornit TPR 152.0mm Self-Piercing Rivet
Ornit TPR 152.0mm Self-Piercing Rivet
SKU:TPR-3d3027
Durable Ornit TPR 152.0mm Self-Piercing Rivet for secure and lasting connections in various applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ornit TPR 152.0mm Self-Piercing Rivet
$29.99
Quantity: 1
Claim Your Seller Account
Ornit TPR 152.0mm Self-Piercing Rivet
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit TPR 152.0mm Self-Piercing Rivet is a durable and efficient fastening solution suitable for a wide range of applications. Constructed with Aluminum Alloy body and Carbon Steel mandrel, this rivet offers high shear and tensile forces. With a natural finish and precise dimensions, it ensures secure and lasting connections. The rivet's compliance with Federal procurement standards and industry certifications makes it a reliable choice for government and institutional projects.
Product Specifications
Nominal Dimensions Body Length
152.0 mm | 6.0 in
Nominal Dimensions Diameter
6.4 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.8 to 7.0 mm | 0.268 to 0.276 in
Nominal Dimensions Head Diameter
12.0 mm | 0.472 in
Nominal Dimensions Head Thickness
1.80 mm | 0.071 in
Nominal Dimensions Mandrel Diameter
3.6 mm | 0.142 in
Nominal Dimensions Maximum Grip Range
133.0 mm | 5.236 in
Nominal Dimensions Minimum Grip Range
116.0 mm | 4.566 in
Nominal Forces Nominal Shear Force
250 kgf | 551 lbf
Nominal Forces Nominal Tensile Force
320 kgf | 706 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (ALmg 3.0/5.0)
Technical Specs Brands
Ornit | TPR
Technical Specs Carton Quantity
400
Technical Specs Mandrel Finish
Zinc Coated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
