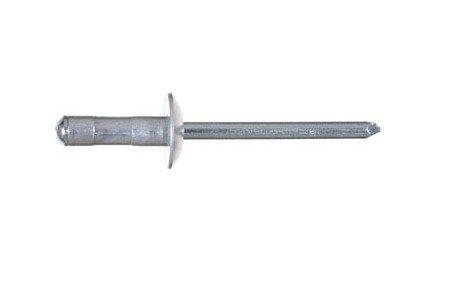

Ornit U-Fix 10.3mm Aluminum Steel Brazier Head Rivet
Ornit U-Fix 10.3mm Aluminum Steel Brazier Head Rivet
Versatile Ornit U-Fix 10.3mm rivet offering superior grip strength for automotive and trailer applications. Durable Aluminum Alloy body and Zinc Plated Chromium (Cr) VI Free mandrel for secure fastening.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Ornit U-Fix 10.3mm Aluminum Steel Brazier Head Rivet
$25.99
Quantity: 1
Claim Your Seller Account
Ornit U-Fix 10.3mm Aluminum Steel Brazier Head Rivet
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit U-Fix 10.3mm Aluminum Steel Brazier Head Rivet is a reliable and versatile fastener designed for a wide range of applications. Crafted from Aluminum Alloy ALmg 2.5 body material with a natural finish, it ensures durability and corrosion resistance. The low carbon steel mandrel with Zinc Plated Chromium (Cr) VI Free finish provides sturdy support. With a nominal shear force of 159 kgf and nominal tensile force of 240 kgf, it offers strong gripping power. Ideal for automotive and trailer applications, the U-Fix rivet securely fastens components with a grip range from 1.6mm to 6.4mm. Trust in Ornit's quality and precision for your fastening needs.
Product Specifications
Applications Automotive Application
The U-Fix is a highly versatile purpose-built fastener, featuring an excellent multi-grip function ideal for a variety of purposes. Commonly used to secure components within the vehicle.
Nominal Dimensions Body Length
10.3 mm | 0.406 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
12.0 mm | 0.472 in
Nominal Dimensions Head Thickness
2.4 mm | 0.094 in
Nominal Dimensions Mandrel Diameter
2.8 mm | 0.110 in
Nominal Dimensions Maximum Grip Range
6.4 mm | 0.252 in
Nominal Dimensions Minimum Grip Range
1.6 mm | 0.063 in
Nominal Forces Nominal Shear Force
159 kgf | 350 lbf
Nominal Forces Nominal Tensile Force
240 kgf | 528 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
5000
Technical Specs Head Style
Brazier Head
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel
