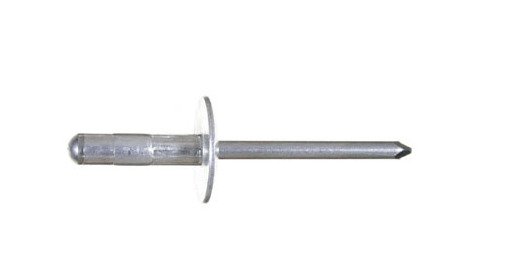

Ornit U-Fix 3.2mm Aluminum/Stainless Steel X-Large Head Rivet
Ornit U-Fix 3.2mm Aluminum/Stainless Steel X-Large Head Rivet
SKU:UFI-cfbaa4
Premium Ornit U-Fix 3.2mm Aluminum/Stainless Steel X-Large Head Rivet, ideal for industrial use.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Ornit U-Fix 3.2mm Aluminum/Stainless Steel X-Large Head Rivet
$59.99
Quantity: 1
Claim Your Seller Account
Ornit U-Fix 3.2mm Aluminum/Stainless Steel X-Large Head Rivet
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit U-Fix 3.2mm Aluminum/Stainless Steel X-Large Head Rivet is a high-quality fastening solution designed for industrial applications. Constructed with Aluminum Alloy ALmg 2.5 body and Stainless Steel AISI 430/434 mandrel, it offers excellent durability and corrosion resistance. With a 9.5mm body length and an extra-large head, it provides a secure grip range of 1.2mm to 6.4mm. Meeting stringent quality standards, this rivet offers a nominal shear force of 75 kgf and a nominal tensile force of 104 kgf.
Product Specifications
Nominal Dimensions Body Length
9.5 mm | 0.374 in
Nominal Dimensions Diameter
3.2 mm | 1/8 in
Nominal Dimensions Drillhole Size
3.3 mm | 0.130 in
Nominal Dimensions Head Diameter
9.5 mm | 0.374 in
Nominal Dimensions Head Thickness
1.20 mm | 0.047 in
Nominal Dimensions Mandrel Diameter
1.81 mm | 0.071 in
Nominal Dimensions Maximum Grip Range
6.4 mm | 0.252 in
Nominal Dimensions Minimum Grip Range
1.2 mm | 0.047 in
Nominal Forces Nominal Shear Force
75 kgf | 165 lbf
Nominal Forces Nominal Tensile Force
104 kgf | 230 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
8000
Technical Specs Head Style
Extra Large
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Stainless Steel AISI 430/434 or Equivalent
