Ornit U-Fix 3.2mm Aluminum Steel Dome Head Rivets
Ornit U-Fix 3.2mm Aluminum Steel Dome Head Rivets
SKU:UFI-01de4b
Quality Ornit Aluminum Steel Dome Head Rivets for secure and professional fastening. Compliant with institutional standards.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Ornit U-Fix 3.2mm Aluminum Steel Dome Head Rivets
$59.99
Quantity: 1
Claim Your Seller Account
Ornit U-Fix 3.2mm Aluminum Steel Dome Head Rivets
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

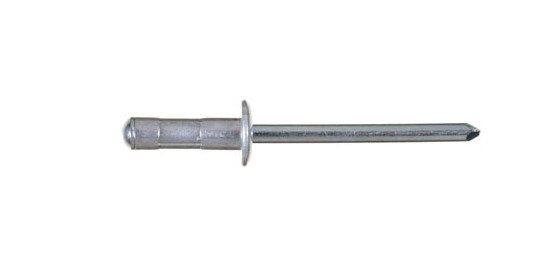

The Ornit U-Fix Aluminum Steel Dome Head Rivets are precision-engineered for durability and reliability. With a body material of Aluminum Alloy ALmg 2.5 and a Mandrel Material of Low Carbon Steel, these rivets ensure secure fastening. The Dome Head design provides a professional finish, while meeting institutional procurement standards for strength and performance. Ideal for a wide range of applications requiring a grip range from 0.8mm to 3.4mm.
Product Specifications
Nominal Dimensions Body Length
6.8 mm | 0.268 in
Nominal Dimensions Diameter
3.2 mm | 1/8 in
Nominal Dimensions Drillhole Size
3.3 mm | 0.130 in
Nominal Dimensions Head Diameter
6.4 mm | 0.252 in
Nominal Dimensions Head Thickness
0.95 mm | 0.037 in
Nominal Dimensions Mandrel Diameter
1.81 mm | 0.071 in
Nominal Dimensions Maximum Grip Range
3.4 mm | 0.134 in
Nominal Dimensions Minimum Grip Range
0.8 mm | 0.031 in
Nominal Forces Nominal Shear Force
75 kgf | 165 lbf
Nominal Forces Nominal Tensile Force
104 kgf | 230 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
10000
Technical Specs Head Style
Dome Head
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel
