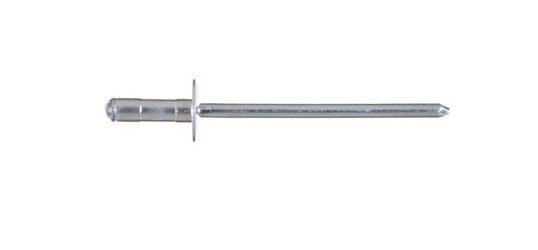

Ornit U-Fix 3.2mm Aluminum Steel Large Head Rivet

Name: Ornit U-Fix 3.2mm Aluminum Steel Large Head Rivet
Brand: Ornit USA
SKU: UFI-72b35d
Price: 49.99 USD
Availability: OutOfStock

SKU:UFI-72b35d

Ornit U-Fix 3.2mm Aluminum Steel Rivet - Durable, Strong & Reliable. Ideal for industrial & automotive use.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Ornit U-Fix 3.2mm Aluminum Steel Large Head Rivet is a superior fastening solution for various applications. Crafted with high-grade Aluminum Alloy ALmg 2.5 body and a low carbon steel mandrel with Zinc Plated Chromium finish, it ensures durability and corrosion resistance. With a large head design and nominal forces measuring 75 kgf shear force and 104 kgf tensile force, this rivet offers exceptional strength and reliability. Suitable for industrial, construction, and automotive projects, it provides a secure grip range of 1.2mm to 6.4mm. Trust Ornit for premium quality fastening solutions.

Product Specifications

Nominal Dimensions Body Length

9.5 mm | 0.374 in

Nominal Dimensions Diameter

3.2 mm | 1/8 in

Nominal Dimensions Drillhole Size

3.3 mm | 0.130 in

Nominal Dimensions Head Diameter

8.25 mm | 0.325 in

Nominal Dimensions Head Thickness

1.0 mm | 0.039 in

Nominal Dimensions Mandrel Diameter

1.81 mm | 0.071 in

Nominal Dimensions Maximum Grip Range

6.4 mm | 0.252 in

Nominal Dimensions Minimum Grip Range

1.2 mm | 0.047 in

Nominal Forces Nominal Shear Force

75 kgf | 165 lbf

Nominal Forces Nominal Tensile Force

104 kgf | 230 lbf

Technical Specs Body Finish

Natural

Technical Specs Body Material

Aluminum Alloy ALmg 2.5

Technical Specs Brands

Ornit

Technical Specs Carton Quantity

8000

Technical Specs Head Style

Large Head

Technical Specs Mandrel Finish

Zinc Plated Chromium (Cr) VI Free

Technical Specs Mandrel Material

Low Carbon Steel

Ornit U-Fix 3.2mm Aluminum Steel Large Head Rivet
