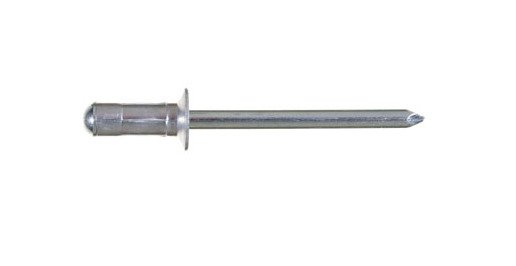

Ornit U-Fix 3.2mm Aluminum Steel Rivet
Ornit U-Fix 3.2mm Aluminum Steel Rivet
SKU:UFI-3de96f
Enhance fastening with Ornit's 3.2mm Aluminum Steel Rivet, meeting high standards for strength and precision.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Ornit U-Fix 3.2mm Aluminum Steel Rivet
$129.99
Quantity: 1
Claim Your Seller Account
Ornit U-Fix 3.2mm Aluminum Steel Rivet
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

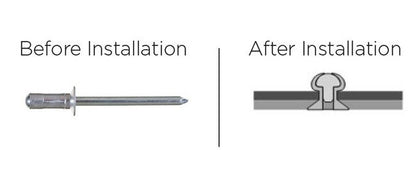

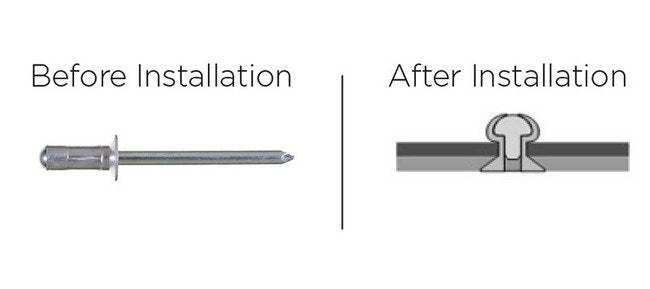

Upgrade your fastening solutions with the Ornit U-Fix 3.2mm Aluminum Steel 120 Degree Countersunk Head Rivet. Crafted from high-quality Aluminum Alloy ALmg 2.5 body material with a zinc-plated chromium VI-free steel mandrel, this rivet boasts exceptional shear and tensile forces, meeting stringent procurement standards. With precise dimensions and a grip range of 2.4mm to 6.4mm, it ensures secure and reliable fastening in diverse applications.
Product Specifications
Nominal Dimensions Body Length
9.7 mm | 0.382 in
Nominal Dimensions Diameter
3.2 mm | 1/8 in
Nominal Dimensions Drillhole Size
3.3 mm | 0.130 in
Nominal Dimensions Head Diameter
5.35 mm | 0.211 in
Nominal Dimensions Head Thickness
0.85 mm | 0.033 in
Nominal Dimensions Mandrel Diameter
1.81 mm | 0.071 in
Nominal Dimensions Maximum Grip Range
6.4 mm | 0.252 in
Nominal Dimensions Minimum Grip Range
2.4 mm | 0.094 in
Nominal Forces Nominal Shear Force
70 kgf | 154 lbf
Nominal Forces Nominal Tensile Force
93 kgf | 204 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
10000
Technical Specs Head Style
Countersunk Head
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel
